Product Information
- UNITS ARE AVAILABLE IN 115, 230 AND 42-48 VAC
- 230 VAC, 42 VAC AND 48 VAC MAY BE CE CERTIFIED
- ONE YEAR REPAIR/REPLACEMENT GUARANTEE
TOP CORD ENTRY/REAR CORD ENTRY
The reversible strain-relief feature allows the power cord to enter from the rear or top of the unit permitting greater access to small work areas.

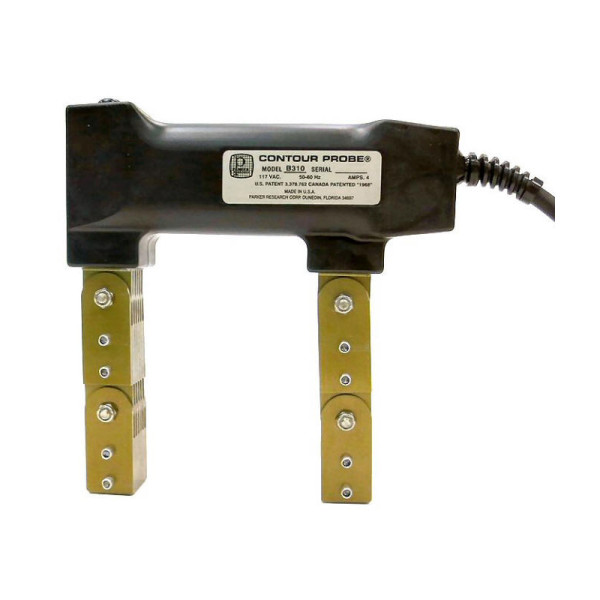

As with all Parker Contour Probes, the B-310 has fully adjustable legs permitting the AC magnetic field to be applied to the precise area of inspection.
SPECIFICATIONS
B-310
B-310S
B-142
Physical
7.25 L ×7.75 H × 2.125 W
Line Voltage Single Phase 115 VAC
50/60 Hz 230 VAC
50/60 Hz 42-48 VAC
50/60 Hz Line Current 4 A 3 A 7.5 A Duty Cycle
2 minutes on – 2 minutes off
Weight 6 lb (2.73 Kg) Construction
Polyurethane-filled glass/nylon housing
10 foot / 3 wire power cord
Span
0-9 in. across poles
