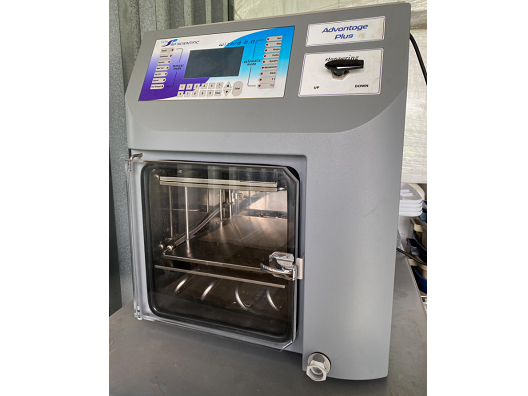

Description
Key Features:
- Compact, bench-top design
- Easy scale up from the AdVantage Plus to larger pilot scale freeze dryers
- Clear acrylic door for easy product viewing during processing
- Stoppering or bulk configurations
- On-board Wizard controller
Specifications:
- Shelf Temperature Control Range (°C)‡: -55 to 60
- Lowest Shelf Temperature (50 Hz / 60 Hz, °C): -62 / -65
- Lowest Condenser Temperature (50 Hz / 60 Hz, °C): -82 / -85
- Maximum Condenser Capacity (L): 6
- Maximum Ice Condensing Capacity in 24 hours (L): 4
- Maximum Deposition Rate (L/hour):17 0.17 0.17
- Shelf Pull-Down from 20 °C to -40 °C (minutes): ≤ 30
- Number of Compressors: 2
- Compressor Horsepower: 1/3, 3/4
- System Refrigerant: R508B, R407C
- Vacuum Rate of Rise (mT/hour): ≤ 60
- Volume-Based Leak Rate (mbar·L/sec) ≤ .0009
- Temperature Uniformity (°C): ± 1.0
