Description

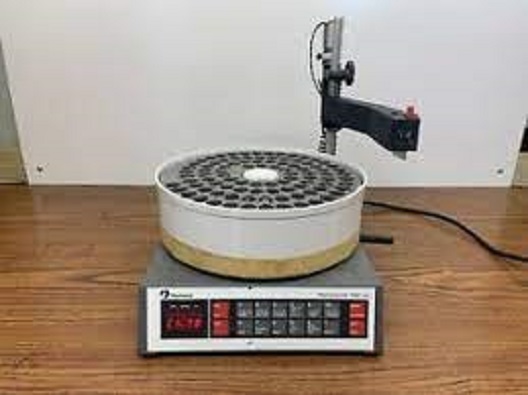

FRAC-100 (with its drop counting accessory) can collect fractions in a variety of different ways, based either on time, volume or drop counting, controlled via simple programs specified by the operator. For example, you can choose to collect uniform fractions of a fixed time period.
Specifications:
- Fraction Size Timing:01-99.99 min (0.01 min increments)
- Fraction Size Timing: 100-999.9 min (0.1 min increments)
- Fraction Size Timing: 1000-9 999 min (1 min increments) within an accuracy of ± 0.02%
- Fraction Size Volume: 01-99.99 ml (0.01 ml increments)
- Fraction Size Volume: 100-999.9 ml (0.1 ml increments)
- Fraction Size Volume: 1000-9 999 ml (1 ml increments) within and accuracy of ± 0.02%
- Maximum Drop Rate: 15 drops/sec
- Weight: 5 kg
- Dimensions: 30 x 29 x 39 cm
- Environment: +4 to +40°C, 20-95% relative humidity
- Environment: 84-106 kPa (840-1060 mbar) atmospheric pressure
- Peak Memory: up to 11 peaks
- Tubing:7 – 2 mm outer diameter
