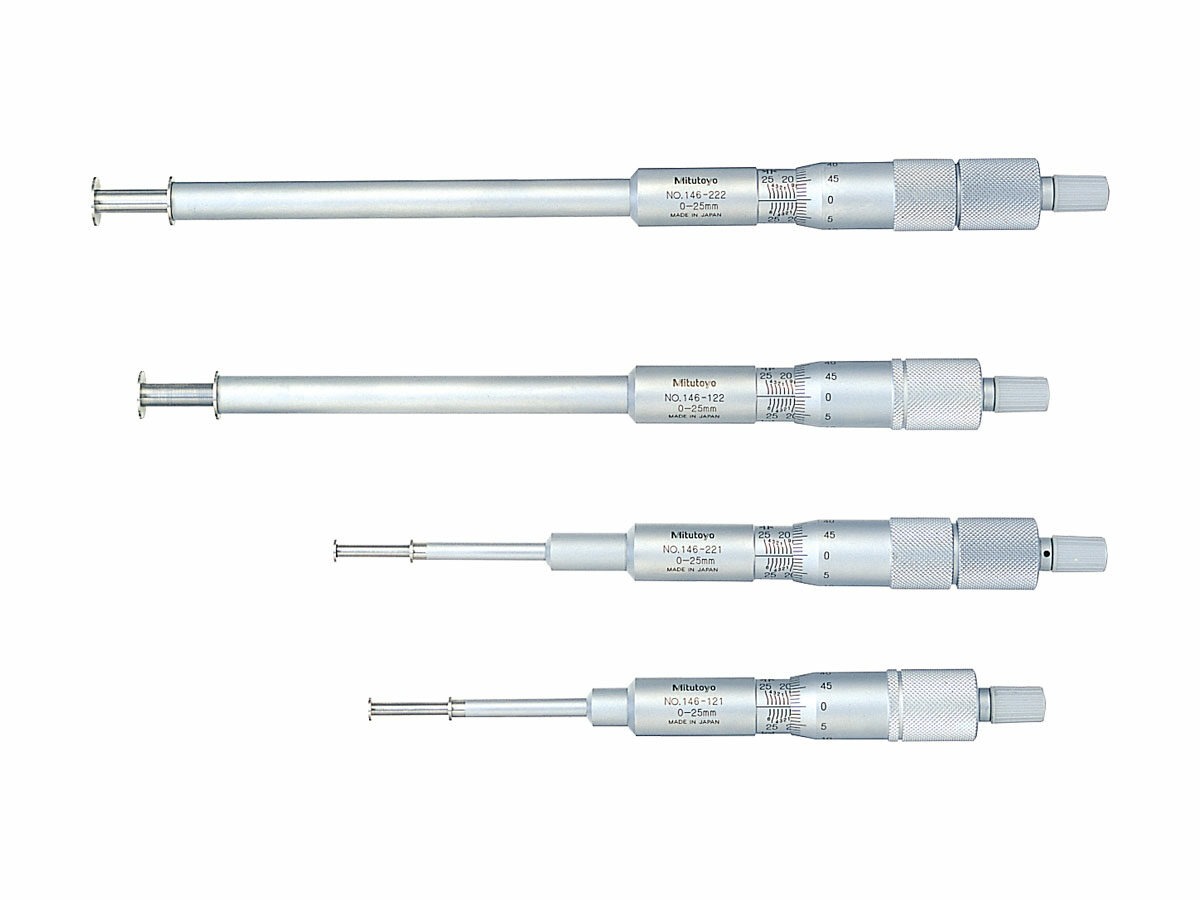

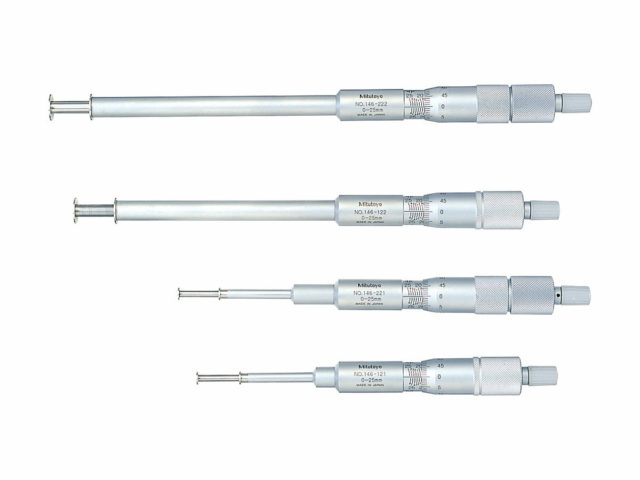

Канавочные микрометры

Микрометр для канавок Mitutoyo с невращающимся шпинделем имеет фланцевый шпиндель и измерительные диски, изготовленные из закаленной стали, для точного измерения ширины, глубины и расположения канавок, внутренних и внешних отверстий и труб.

The Mitutoyo groove micrometer»s two-direction ratchet stop provides a constant measuring force on the spindle to ensure accurate, repeatable measurements of groove depths and widths. The sleeve and spindle contain measurements for both inside and outside diameters laser etched for precise, easy reading.

Available in Metric and Inch models
Groove micrometer is available with a rotating and non-rotating spindle
Measuring discs are constructed precision ground hardened steel, precision in our Japanese factory
Ratchet mechanism provides an audible click to ensure measurement is performed with a constant force
Hardened measuring discs resist wear for better accuracy over time
Micrometer is precision balanced for easier handling and better readability
Satin chrome finish on the sleeve and laser etched measurements on sleeve and thimble for easier reading
Supplied in a plastic, fitted case

Order No.:	Product Image:	Units:	Spindle Type:	Range Inside:	Range Outside:	Flange diameter:	Accuracy:	Mass:	Graduation:	Parallelism:

Order No.:

146-121	—	Metric	Rotating	1.6 — 26.5mm	0 — 25mm	6.35mm	±10µm	135g	0.01mm	10µm or less
146-122	—	Metric	Rotating	1.6 — 26.5mm	0 — 25mm	12.7mm	±10µm	185g	0.01mm	10µm or less
146-123		Metric	Rotating	26.5 — 51.5mm	25 — 50mm	12.7mm	±10µm	175g	0.01mm	10µm or less
146-124	—	Metric	Rotating	51.5 — 76.5mm	50 — 75mm	12.7mm	±10µm	165g	0.01mm	10µm or less
146-125	—	Metric	Rotating	76.5 — 101.5mm	75 — 100mm	12.7mm	±10µm	180g	0.01mm	10µm or less
146-131	—	Inch	Rotating	.055 — 1.05″	0 — 1″	0.25″	±0.0004″	135g	0.001″	0.0004″ or less
146-132	—	Inch	Rotating	.055 — 1.05″	0 — 1″	0.50″	±0.0004″	185g	0.001″	0.0004″ or less
146-133	—	Inch	Rotating	1.05 — 2.05″	1 — 2″	0.50″	±0.0004″	175g	0.001″	0.0004″ or less
146-134		Inch	Rotating	2.05 — 3.05″	2 — 3″	0.50″	±0.0004″	165g	0.001″	0.0004″ or less
146-135	—	Inch	Rotating	3.05 — 4.05″	3 — 4″	0.50″	±0.0004″	160g	0.001″	0.0004″ or less
146-221		Metric	Non-rotating	1.6 — 26.5mm	0 — 25mm	6.35mm	±10µm	135g	0.01mm	10µm or less
146-222		Metric	Non-rotating	1.6 — 26.5mm	0 — 25mm	12.7mm	±10µm	185g	0.01mm	10µm or less
146-223	—	Metric	Non-rotating	26.5 — 51.5mm	25 — 50mm	12.7mm	±10µm	175g	0.01mm	10µm or less
146-224	—	Metric	Non-rotating	51.5 — 76.5mm	50 — 75mm	12.7mm	±10µm	165g	0.01mm	10µm or less
146-225	—	Metric	Non-rotating	76.5 — 101.5mm	75 — 100mm	12.7mm	±10µm	160g	0.01mm	10µm or less
146-231		Inch	Non-rotating	.055 — 1.05″	0 — 1″	0.25″	±0.0004″	135g	0.001″	0.0004″ or less
146-232		Inch	Non-rotating	.055 — 1.05″	0 — 1″	0.50″	±0.0004″	185g	0.001″	0.0004″ or less
146-233	—	Inch	Non-rotating	1.05 — 2.05″	1 — 2″	0.50″	±0.0004″	175g	0.001″	0.0004″ or less
146-234	—	Inch	Non-rotating	2.05 — 3.05″	2 — 3″	0.50″	±0.0004″	165g	0.001″	0.0004″ or less
146-235	—	Inch	Non-rotating	3.05 — 4.05″	3 — 4″	0.50″	±0.0004″	160g	0.001″	0.0004″ or less

146-121
146-122
146-123
146-124
146-125
146-131
146-132
146-133
146-134
146-135
146-221
146-222
146-223
146-224
146-225
146-231
146-232
146-233
146-234
146-235

Технические характеристики

Technology:	Mechanical
Ratchet/Thimble:	Ratchet Stop
Measuring Force:	0.7-1.2N
