Description

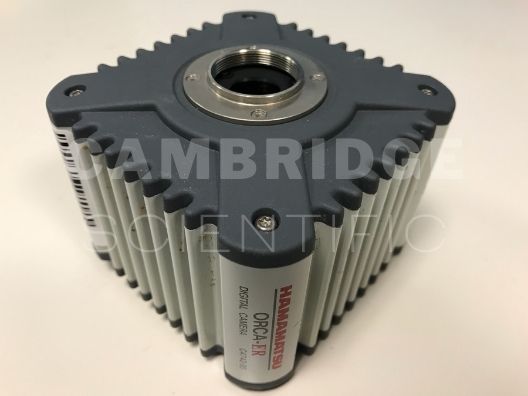

The ORCA-ER is a next-generation B/W CCD digital camera using an advanced progressive scan interline CCD chip with high sensitivity in the VIS-NIR region and good noise characteristics at high frame rates. The Peltier cooled, hermetically sealed vacuum head is cooled to -20°C, reducing dark noise and minimizing thermal drift which makes this camera an ideal choice for demanding scientific and industrial applications.
Specifications:
- Imaging device: Progressive scan interline CCD with micro-lens
- Effective no. of pixels: 1344 (H)*1024 (V)
- Cell size:45 µm * 6.45 µm (square format)
- Effective area:58 mm * 6.86 mm (2/3-inch format)
- Pixel clock rate:75 MHz/pixel
- Frame rate:35 Hz
- 2 x 2 binning:45 Hz
- 4 x 4 binning:05 Hz
- 8 x 8 binning:31 Hz
- Readout noise (r.m.s.): 8 electrons
- Full well capacity: 18,000 electrons
- Dynamic range*: 2250:1
- Cooling method: Peltier cooling with hermetic vacuum sealing
- Cooling temperature: -20°C at 20°C ambient temperature
- Dark current:1 electron/pixel/sec
- A/D converter: 12 bit
- Output signal (digital output): RS-422A 12-bit parallel output
- External control: RS-232C (full remote for all camera functions)
- Sub array: Yes
- External trigger: Yes
- Contrast enhancement: Analog gain (10 times max.) and offset functions.
- Power consumption: 70 VA
- Ambient storage temperature: -10 to +50°C
- Ambient operating temperature: 0 to +40°C
- Ambient operating/storage humidity: 70% max. (no condensation)
