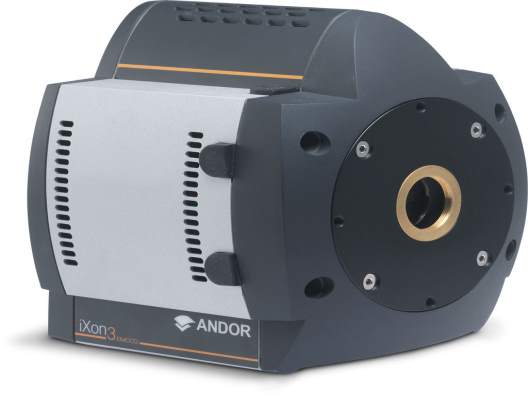

Камера для микроскопа Andor Technology iXon3 860E BV EMCCD *НОВАЯ*

Description

Andor»s iXon3 860 back-illuminated EMCCD is designed for very rapid imaging of low light events, combining &gt, 500 frames/sec with single photon detection capability and &gt, 90% Quantum Efficiency. Thermoelectric cooling down to -100°C minimizes EM-amplified darkcurrent, whereas Andor»s ‘overclocked» vertical shift speeds minimize both clock induced charge noise and vertical smear during frame transfer.

Specifications:

• Active pixels: 128 x 128
• Pixel size (W x H): 24 x 24 μm
• Active area pixel well depth: 160,000 e
• Gain register pixel well depth: 800,000 e
• Maximum readout rate: 10 MHz
• Frame rate: 513 – 14,025 fps
• Read noise: &lt, 1e- with EM gain
• Maximum cooling: -100°C
• Sensor Options: #BV: Back Illuminated CCD, Vis optimized
