The Mitutoyo ABSOLUTE tube thickness gage conveniently measures the wall thickness of curved pieces for a wide range of applications using materials up to 12mm/.47” thick. The tube thickness anvil reduces the surface area of the contact points for more precise point measurements of a piece»s rounded surface. These indicators utilize the Mitutoyo ID-C and ID-S Digimatic indicators to provide error-free LCD readings. The grip handle, easy-to-reach lifting lever and spring-loaded spindle allows for quick and easy measurements without sacrificing accuracy.
- Metric/Inch models available
- Available with SPC output capabilities
- Spindles and anvils on most models are constructed with ceramic for better corrosion resistance
- Signal can be output to external device, waterproof data output connector protects against dust, water and oil ingress
- ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
- Origin reset is not required even when data is re-displayed after disappearance due to insufficient illumination during use
- SPC output function allows for quick and easy data management in real time
- Unlimited response speed eliminates over-speed errors
- Measuring force is 1.5N or less
- Supplied in a fitted plastic case
| Order No.: | Product Image: | Range: | Indicator type: | Optional Accessories: | |
|---|

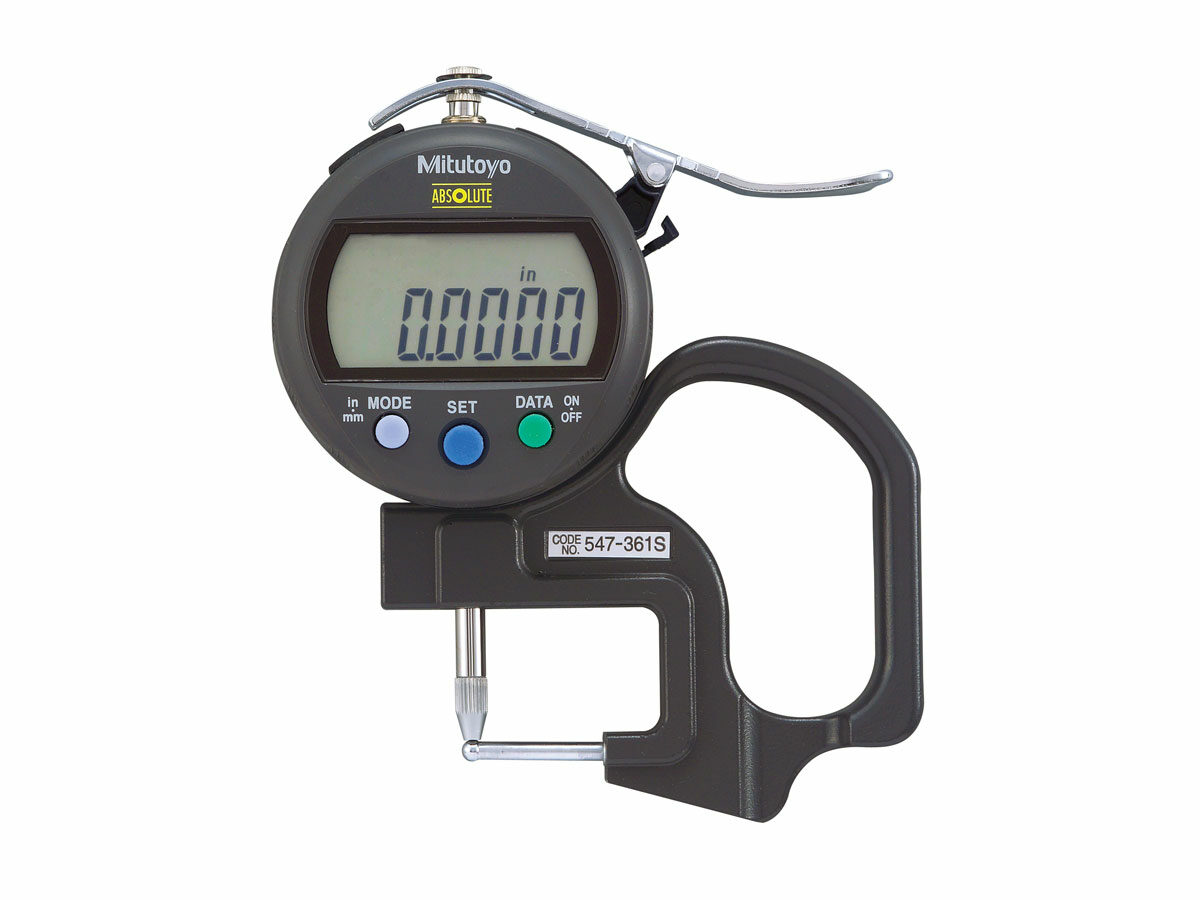

| 547-361S | — | 0-0.4″ / 0-12mm | Digimatic IDC | — |
| 547-561S | — | 0-0.47″ / 0-12mm | Digimatic IDS | — |
Технические характеристики
| Technology: | Digimatic |
|---|
| Units: | Inch, Metric |
|---|
| Resolution: | .0005′ / 0.01mm |
|---|
| Accuracy: | ±0.001′ |
|---|
| SPC Output: | Yes |
|---|
| Measuring Force: | 1.5 or lessN |
|---|
| Indicator type: | Digimatic IDS |
|---|
| Display: | LCD |
|---|
| Battery: | SR44 (1pc.) 938882 |
|---|
| Battery life: | Approx. 20,000 hours under normal use |
|---|
| Remarks: | Tube thickness |
|---|
| Required Accessories: | — |
|---|
