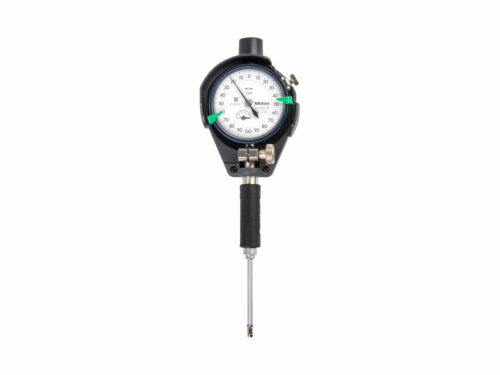

The Mitutoyo extra small hole bore gage features a split-ball design with stainless steel contact points to measure a hole»s inside diameter and identify out-of-roundness issues with an accuracy to +/-4µ/.00016”. These bore gages come in various measuring ranges and are available with or without a Mitutoyo Dial Indicator.
- Available in Metric or Inch models
- Each bore gage model comes with a set of different anvil sizes
- Models with dial indicators are fully protected by a rugged cover
- Gage stem diameter is .375”
- Interchangeable anvils are made of stainless steel for added accuracy and durability
- Supplied in a plastic case
| Order No.: | Product Image: | Range: | Number of anvils: | Number of needles: | Probe depth: | |
|---|
| 526-103 | — | 3-4″ | 7 | 1 | 2.2″ |
| 526-103-20 | — | 0.3-0.4″ | 7 | 1 | 2.2″ |
| 526-104 | — | 4-7″ | 7 | 1 | 2.4″ |
| 526-104-20 | — | 0.4-0.7″ | 7 | 1 | 2.4″ |
| 526-155-10 | — | .146-.287″ | 9 | 1 | 1.26″ |
| 526-155-11 | — | .146-.287″ | 9 | 1 | 1.26″ |
| 526-155-20 | — | 0.146-0.287″ | 9 | 1 | 1.26″ |
| 526-155-21 | — | 0.146-0.287″ | 9 | 1 | 1.26″ |
| 526-165-10 | — | .059-.156″ | 5 | 2 | .689, .886″ |
| 526-165-11 | — | .059-.156″ | 5 | 2 | .689, .886″ |
| 526-165-20 | — | 0.059-0.156″ | 5 | 2 | 0.689, 0.886″ |
| 526-165-21 | — | 0.059-0.156″ | 5 | 2 | 0.689, 0.886″ |
| 526-175-10 | — | .037-.061″ | 6 | 1 | .453″ |
| 526-175-11 | — | .037-.061″ | 8 | 1 | .453″ |
| 526-175-20 | — | 0.037-0.061″ | 6 | 1 | 0.453″ |
| 526-175-21 | — | 0.037-0.061″ | 8 | 1 | 0.453″ |
| 526-103 |
| 526-103-20 |
| 526-104 |
| 526-104-20 |
| 526-155-10 |
| 526-155-11 |
| 526-155-20 |
| 526-155-21 |
| 526-165-10 |
| 526-165-11 |
| 526-165-20 |
| 526-165-21 |
| 526-175-10 |
| 526-175-11 |
| 526-175-20 |
| 526-175-21 |
Технические характеристики
| Technology: | Mechanical |
|---|
| Units: | Inch |
|---|
| Stem Diameter: | 3/8′ |
|---|
| With Dial Gage Protective Cover (21DZA000): | No |
|---|
| Accessories: | Accessories |
|---|
