Description

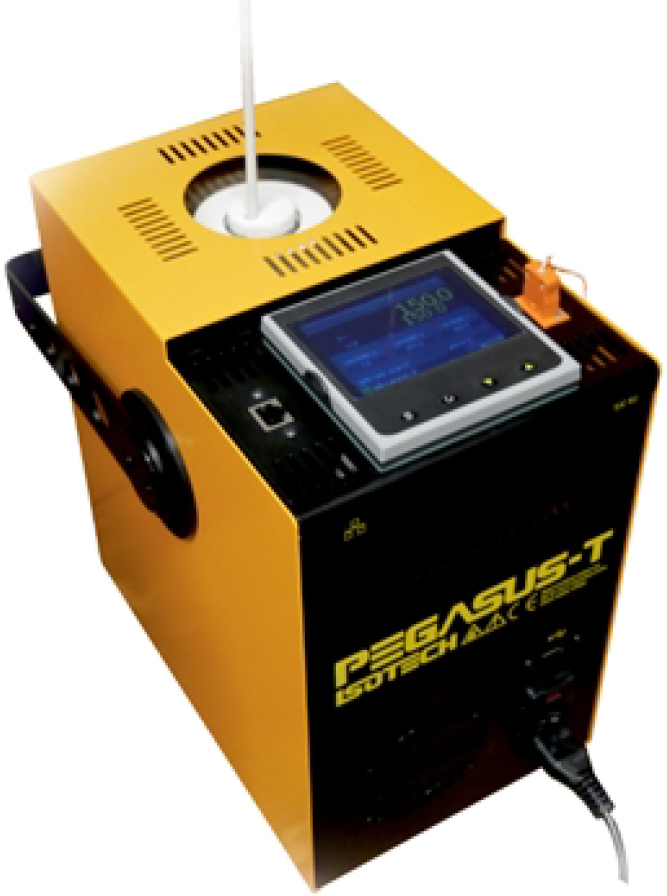

The Isotech Pegasus-T Temperature Calibrator offers extreme high temperature calibration in an easy to use portable package. It is ideal for the calibration of high temperature thermocouples. It has been designed for fast heating and finds applications in the glass, electrical power, automotive and material processing industries. The Pegasus-T has a measuring range of 302 to 2012°F (150 to 1100°C). The advanced control system allows the user to select optimal performance for sensors immersed at 25mm, 35mm or 50mm with three independent control loops. It also has built in over-temperature protection to protect the heater wire from overtemperature thus increasing life expectancy.
Технические характеристики
Features
- 302 to 2012°F (150 to 1100°C) temp range
- 32.18°F (0.1°C) over whole range Display resolution
- 77°F (25°C) minute heating rate
- Cooling rate:
- 2192°F to 1472°F in 50 minutes
- 2192°F to 392°F in 80 minutes
- 33.5mm diameter by 100mm Deep calibration volume
- Automatic temperature cycling
- Datalogging
