The Mitutoyo input tool is an interface enabling you to easily input measurement data from a Mitutoyo calipers, micrometers, indicators and height gages with Digimatic output to your PC. Input models connect to a PC via either a USB or an RS-232C connector, depending on the model.
- Data switches are included
- Optional accessories including a foot switch and gage selector are available
| Order No.: | Product Image: | Model: | Measuring Tools Required: | PC Requirement: | Requires SPC Cables: | Optional VCP Drivers Available: | Data Switch Included: | Port for Footswitch: | Outside Dimensions HxWxD: | Mass: | Optional Accessories: | |
|---|
| 264-007 |  | RS-232 Input Tool | Mitutoyo Digimatic measuring tools with SPC output | PC Compatible (including laptops) with RS-232 interface. Connects to RS-232C port on CPU (D-sub 9-pin connector) | Yes | — | Yes | Yes | 2.8 x 1.7 x .9″ / 72 x 44 x 23.5mm | 91g | — |

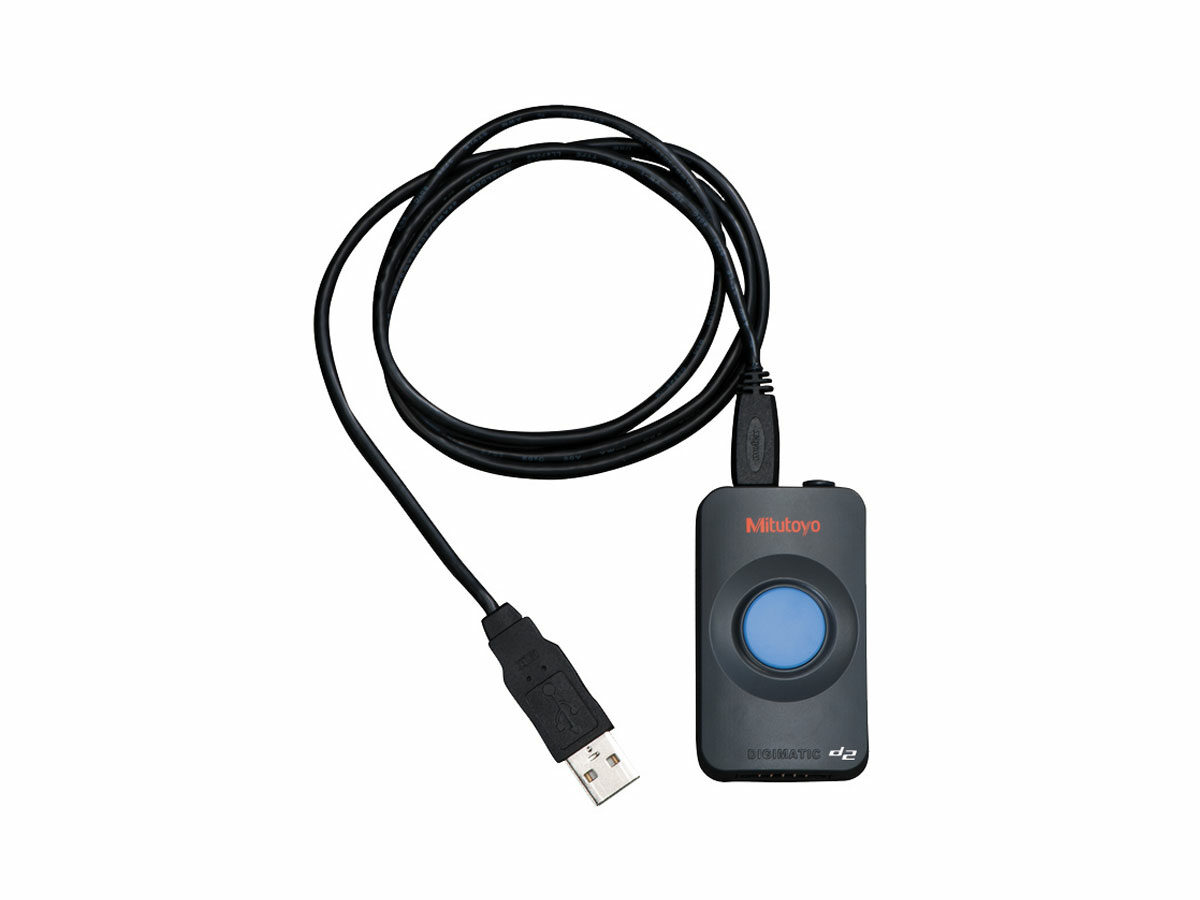

| 264-016-10 | — | USB Input Tool | Mitutoyo Digimatic measuring tools with SPC output | PC Compatible (including laptops) with USB 2.0 or 1.1 port | Yes | Yes | Yes | Yes | 2.5 x 1.5 x .83″ / 64 x 38 x 21mm | — | — |
