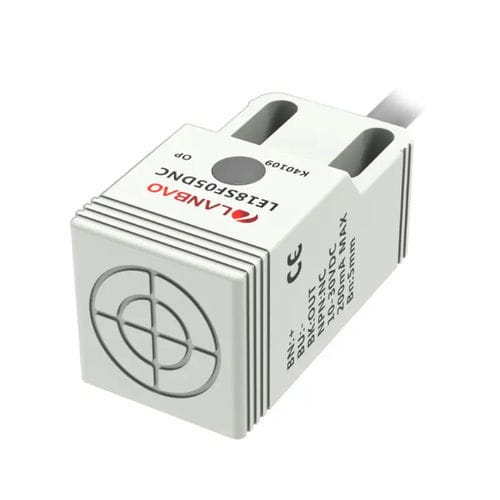

LE17 series plastic square inductive proximity sensor adopts PBT shell material, economical price, good water resistance. The detection distance of the fulsh sensor can be reached 5mm, the detection distance of the non-fulsh sensor can be reached 8mm, and the repetition accuracy can reach 3%,high detection accuracy.The diameter specification is 17 *17 *28mm and 18 *18 *36 mm.The sensor supply voltage 2 wires, equipped with 2m PVC cable.Normally open or close output mode,IP67,CE certificates. Lanbao AC 2 wires output square plastic inductive sensor is suitable for most automation fields, LE17,LE18 series of micro and small inductive sensors have a variety of dimensions and special IC design, compact structure, strong stability, high reliability,IP67 protection class which is effectively moisture-proof and dust-proof. The universal mounting surface enables easy replacement of existing machines and equipment, improves work efficiency, saves time cost and installation cost. Accurate detection, fast reaction speed, can achieve rapid operation process, mainly used in the automotive industry, food, chemical industry. Product Features > Non contact detection, safe and reliable, > ASIC design, > Perfect choice for metallic targets detection, > Housing size: 17 *17 *28mm,18 *18 *36 mm > Housing material: PBT > Output: AC 2wires > Connection: cable> Mounting: Flush，Non-flush > Supply voltage: 90…250V > Switching frequency: 20 HZ > Load current: ≤200mA
Технические характеристики
CharacteristicsTechnologyinductiveShapesquareSupply voltageACMountingflush, non-flushMaterialplastic, PVCProtection leveldust-proof, IP67, moisture-proofOther characteristicscompact, microMeasuring range
Max.: 8 mm (0.31 in)
Min.: 5 mm (0.2 in)
Process temperature
Max.: 70 °C (158 °F)
Min.: -25 °C (-13 °F)
