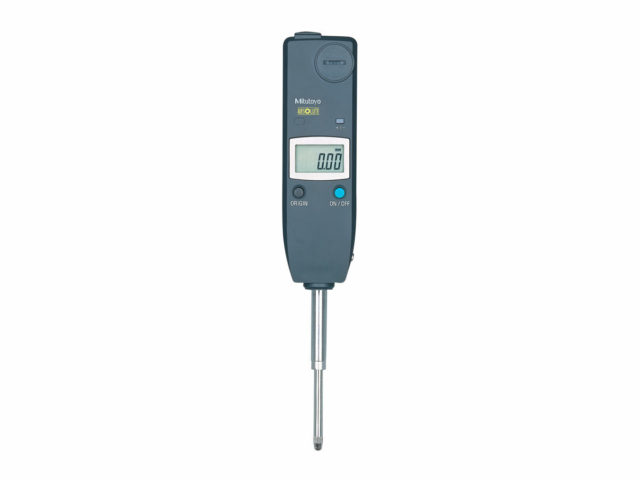

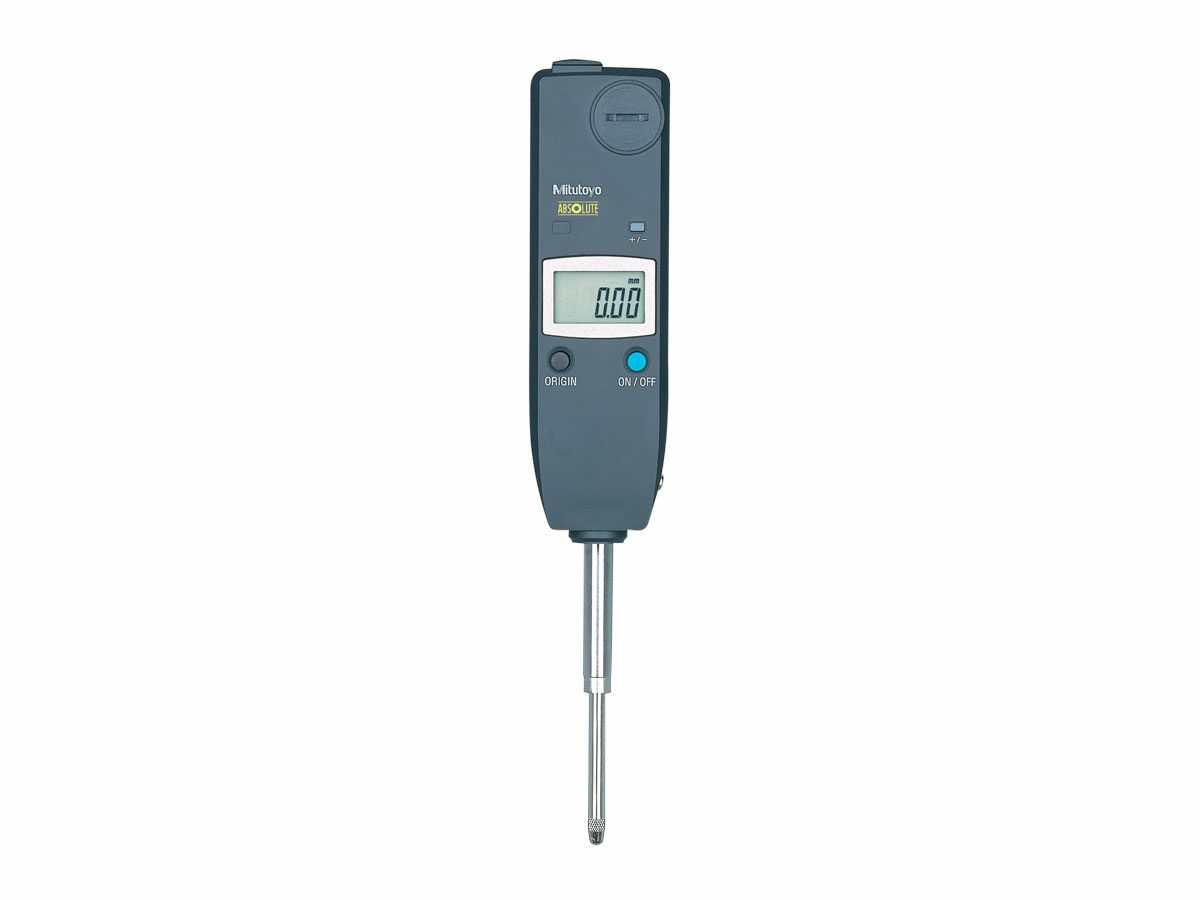

Индикатор ABSOLUTE Digimatic ID-U

The Mitutoyo ABS digital ID-U digital indicators with a slim, simple design provide up to a 25.4mm/1” range that is easy to use and read. Large push buttons provide direct, easy access to all of the indictor»s functions, and readings are shown on a large 8mm LCD display. The ABSOLUTE sensor automatically restores the last origin position when the indicator is turned on, allowing for quick-start operation which is useful in multipoint measurements. The indicator»s 23mm depth and approximately 20,000 hour battery life makes it suitable for installing in measuring devices.

• Available in Metric and Inch/Metric models
• Available with or without SPC output capabilities
• ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
• Origin reset is not required even when data is re-displayed after disappearance due to insufficient illumination during use
• SPC output function allows for quick and easy data management in real time
• Functions include Origin set, zero set, counting direction switching, power On/Off, data output and inch/mm conversion (on inch/metric models only)
• Alarm: Low voltage, counting value composition error, over-flow error
• Unlimited response speed eliminates over-speed errors
