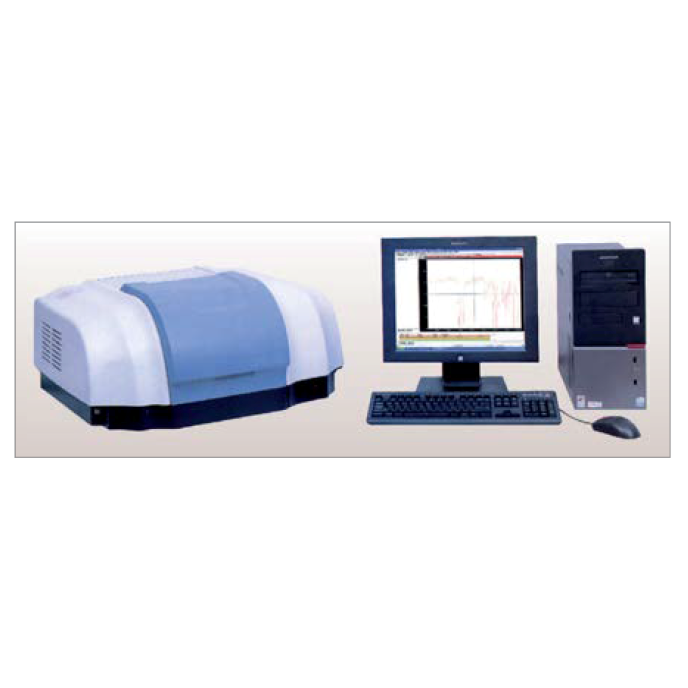

The FTIR spectrophotometer is a new cube-corner type Michelson interferometer which is compact with high stability and less sensitivity to vibrations and thermal variations than conventional Michelson interferometers. It is fully sealed for damp and dust-proof operation with built-in desiccant, viewable observation window, accuracy and reliability.
Features:
- Isolated IR source and large space heat dissipation chamber
- High intensity IR source adopts a reflex sphere to retain even and stable IR radiation
- Cooling fan for mechanical stability
- Super wide sample compartment for flexibility
- Programmable gain amplifier, high accuracy AID converter and embedded computer
- Connects to PC via USB port for automatic control and data export
- Compatible PC control and software
- Various special IR libraries are available for routine searches, libraries can be added or set up
- Accessories available: Defused/specular reflection, ATR, liquid cell, gas cell, and IR microscope can be mounted
Specifications:
Model EM-FTIR-SPEC
Spectral Range
7800 to 350cm-1
Resolution Better than 0.85cm-1 (WQF-510A)
Better than 0.85cm-1 (WQF-520A) Wavenumber Precision ±0.01cm-1
Scanning Speed 5 step adjustable for different applications Signal to Noise Ratio Better than 15000:1 (RMS value at 2100cm-1, resolution 4cm-1, detector DTGS, 1min data collection) Beam Splitter Ge coated KBr Infrared Source Air cooled, high efficiency, reflex sphere module Detector DTGS Data System Compatible computer Software FT-IR software contains all routines needed for basic spectrometer operations including library search quantitation and spectrum export IR Libraries 11 IR libraries included Dimensions 540 x 520 x 260mm Weight 28kg
