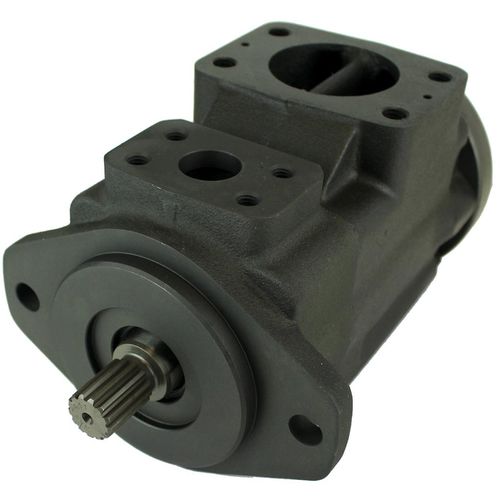

Gingle cartdrige, 10 Vanes pumps are uni-directional units with a great versatility and a silent running. Their cartridges are replaceable in a very easy way. Output ports configuration can be customized. Thru Drive Single Vane Pump, to reach a double or triple systems. Available in 3 different mounting flanges: SAE A, SAE B & SAE C.
Технические характеристики
CharacteristicsTyperotary vaneOther characteristicsdouble, triplePressure
Max.: 210 bar (3,046 psi)
Min.: 125 bar (1,813 psi)
Flow rate
Max.: 88 l/min (23.25 us gal/min)
Min.: 32 l/min (8.45 us gal/min)
Speed
Max.: 2,500 rpm (15,708 rad.min-1)
Min.: 600 rpm (3,770 rad.min-1)
Weight
19.5 kg (42.99 lb)
Power
Max.: 23.8 kW (32.4 hp)
Min.: 6.9 kW (9.4 hp)
