HV110/HV120 – Тип А

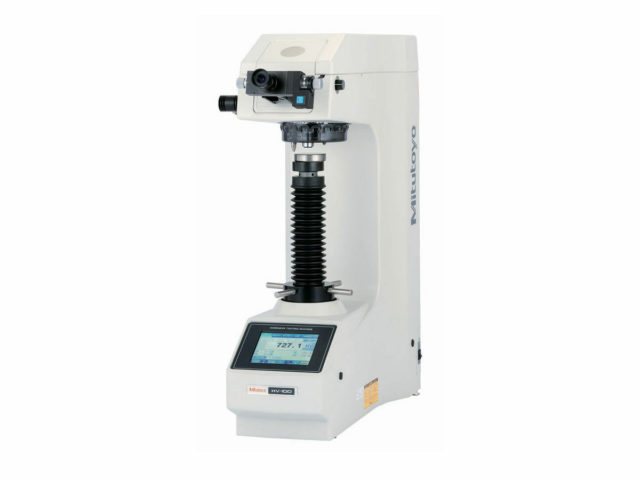

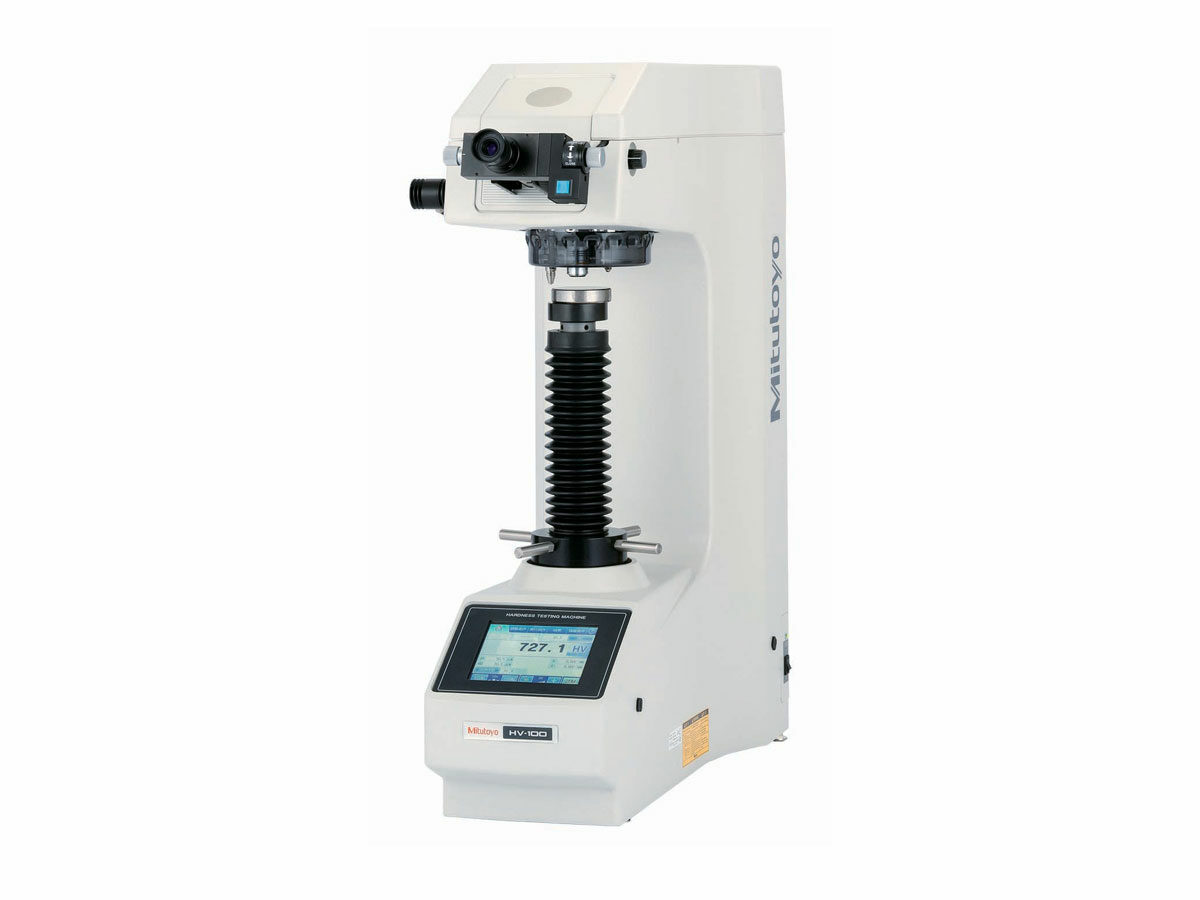

Твердомер по Виккерсу Mitutoyo HV-110/HV-120 серии A работает так же плавно, как и электрические модели, сохраняя точность традиционных испытательных усилий.

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.

Оплата физическими и юридическими лицами безналичным расчетом.

Цена может измениться после запроса у поставщика!

The Mitutoyo HV-110/HV-120 models performs multi-point and average hardness evaluations without the need for external data processors. The 5.7-inch color touchscreen display provides high visibility and allows the unit to operate easier.

Feature motorized force selection from 1-50kgf or .3 to 30kgf
A dual-line filar eyepiece combined with a color touch-screen LCD to create accurate measurements with the touch of a button
The motorized turret can accommodate up to 3 long working distance objective lenses for an even wider range of materials and a wide variety of anvils and x-y stages are also available
Digital output streams measurement data into software or spreadsheets
LED illumination provides better visibility of specimen without producing heat

Order No.:	Product Image:	Forces:

Order No.:

810-441A	—	9.807, 19.61, 29.42, 49.03, 98.07, 196.1, 294.2, 490.3N / 1, 2, 3, 5, 10, 20, 30, 50kgf
810-446A	—	2.942, 4.903, 9.807, 24.51, 49.03, 98.07, 196.1, 294.2N / 0.3, 0.5, 1, 2.5, 5, 10, 20, 30kgf

810-441A

810-446A

Технические характеристики

Technology:	Closed Loop
Measuring Method:	Optical- Type A-Manual Filar
Objective Lenses:	10X
Measuring Microscope:	10X Dual-line Filar
Total magnification:	20-100x
Field of view:	1.4mm
Minimum Reading:	&lt,50x=0.1µm, ≥50x=0.01µm
Available Lenses:	2X, 5X, 20X, 50X, 100X
Display:	Color LCD Touch Screen
Power Supply:	120 Volt AC/60Hz
Main Unit Dimensions:	9.9×24.7×30.7′ / 252x627x781mm
Force Method:	Motorized
Loading Accuracy:	±1%
Load Control:	60, 150µ/s
Loading Time:	5-99 sec
Max Sample Height:	210mm
Max Sample Depth:	160mm
Anvil Max Sample Weight:	20kg
With X-Y Stage Max Sample Weight:	10kg
Curvature Correction:	0.01 — 200mm
Scaled Conversion:	8 Types (ASTM, ISO, JIS, SAE and BS)
Required Accessories:	—
Accessories:	Accessories
Test Methods:	HV, HK, HB (Light Force), Kc
Mass:	110 lbs / 50kg
Output:	Rs232, SPC, USB 2.0
