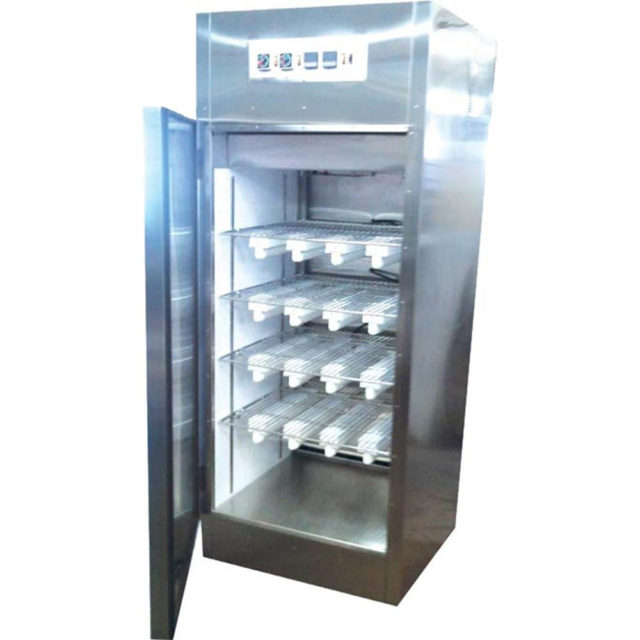

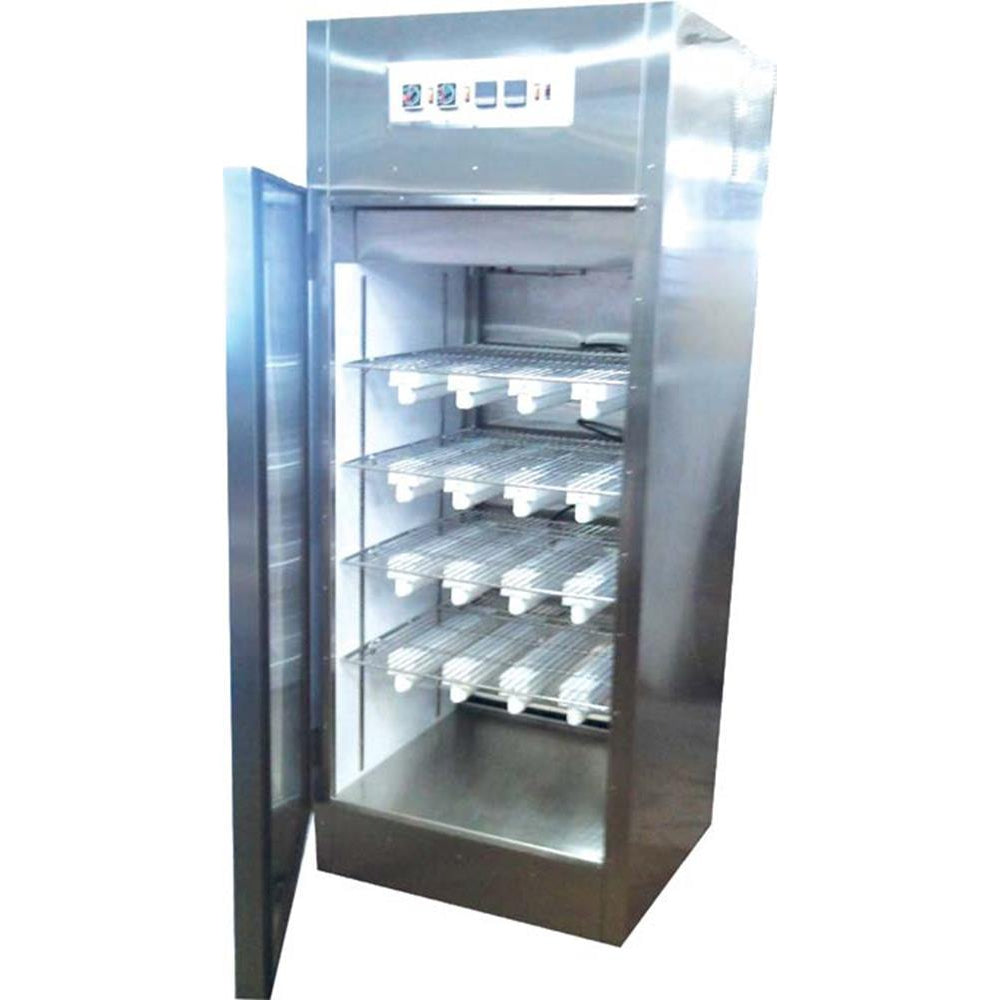

Labec refrigerated incubators are fitted with internal lights and are manufactured in Australia with high quality grade 304 stainless steel for easy maintenance and excellent durability. Suitable for applications such as plant germination and culture growth or where refrigeration, heating and diurnal control is required in a single chamber. Labec»s superior air flow system and PID heating system provides excellent temperature uniformity.
Features:
- RCD/ ELB (earth leakage breaker).
- Over Temperature Thermostat.
- Stainless Steel exterior.
- Adjustable/removable shelving.
- Lockable castors.
- Magnetic door seals
Controller — Environmental conditions can be accurately reproduced and controlled with our dynamic air flow system and unique heating system. They provide excellent temperature uniformity using a digital microprocessor based PID temperature controller which controls the temperature within the range 5°C Lights OFF / 10°C Lights ON up to +50°C and Day/Night simulation features.
Data logging — When optioned the controller can be connected via RS232/RS485 communication ports which can be connected directly to a data logger or computer to log chamber information. Software is available for programming and monitoring.
Lighting — A range of lighting configurations to suit your applications is available. Lighting can be door lighting, wall lighting, or on each shelf. The shelf lighting provides High light intensity, >,90 micromoles centre of each shelf with the option available of white aluminium interior for high reflectivity. Labec incubators can now be supplied with T5 fluorescent lights in standard, marinestar, aquastar or grolux lights for different applications. The T5 lights use electronic ballasts which give a ¼ more output than the standard T8 tubes.
Additional options — To suit requirements the addition of options such as safety toughened glass viewing window for easy viewing, programmable controllers, timers and cable access ports are also available.
Product EICC18 EICC24 EICC36 EICC50 EICC75 EICC120 Capacity
66L
160L
300L
507L
750L
1200L
Internal Dimensions
(H x W x D)
460 x 380 x 380mm
600 x 500 x 500mm
900 x 600 x 500mm
1200 x 650 x 650mm
1300 x 1000 x 550mm
1350 x 1550 x 550mm
External Dimensions
(H x W x D)
1310 x 510 x 640mm
1550 x 610 x 750mm
1890 x 730 x 800mm
2200 x 800 x 970mm
2250 x 1100 x 860mm 2100 x 1550 x 860mm
Temperature Control
Digital PID Controller, Pt 100 ohms sensor
Temperature Range
+5ºC Lights OFF / +10ºC Lights ON ~ +50ºC
Temperature Accuracy and Fluctuation
±0.1ºC, ±0.2ºC
Heating System
Electric element
Refrigerant
R134a (CFC Free)
Construction Interior — Stainless Steel
Exterior — Stainless Steel
Lockable casters — standard Shelves (adjustable)
2
3 (shelf lights available)
6
8
Standard Wall Lighting
2 x 18W
2 x 36W
3 x 36W
6 x 36W
8 x 36W
Power
1500W/10A
2200W/10A
2400W/10A
3600W/15A
Power Supply
240V/50Hz
Safety Features
Over temperature alarm, temperature protection cut off, earth leakage breaker (ELB)
Options
Safety thermostat, water jacket, timer, extra shelves, humidity control (see LHC range), low temperature models to -20ºC, high temperature models to +150ºC, acrylic viewing window or inner glass door, defrost timer, chart recorder
Weight
85kg
102kg
135kg
155kg
195kg
210kg
