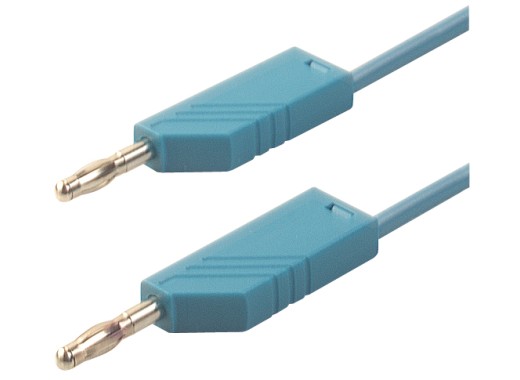

These cables by SKS Kontakt are suitable for various purposes. The cables with a diameter of 2.5 mm² can manage currents of 32 A. The 4 mm pins are the standard for power supplies, multimeters and similar products, and have a contact resistance of only 12 mΩ. This is thanks to the nickel-coated copper beryllium contacts. The insulation contains colour coding making it easy to notice when damaged. The cables are very flexible due to the braided structure and they are also double insulated.
The cables have a diameter of 2.5 mm and are able to manage higher currents than the thinner versions. They are available in various colours and lengths of 25, 50, 100 or 150 cm.
On this page the blue cable of 100 cm can be ordered.
Specifications Cable typeLEH-XY Contact resistance12 mΩ Voltage30 V AC
60 V DC Length25 / 50 / 100 / 150 cm Conductor diameter2.5 mm Braided structure 320 * 0.10 mm wire MaterialPVC
