- four precision configurations
- two load configurations
Application specific versions:
- vacuum suitable
- antimagnetic
- radiation resistant
- in black
Modularly individually configurable:
- from basic model to high-end system
- to multi-axis systems
- with individual transmission aperture
- with customer-specific hole pattern
Precision configurations:
 |  |  |  | ||
Accuracy [«]: | ≤ | 40 | 30 | 15 | on request |
Repeatability (unidir.) [«]: | ≤ | 4 | 2 | 2 | on request |
Reversal error [«]: | ≤ | 20 | 10 | 7 | on request |
Eccentricity [µm]: | ≤ | 5 | 3 | 2 | 2 |
Wobble [«]: | ≤ | 8 | 4 | 3 | 3 |
Dimensions [mm]:
D: | L: | H: |
138 | 171 | 67 |
Accessories:
Motors: | 2-/3-/5-Ph. |
Servo/DC | |
Hand wheels: | 0056 |
Gear boxes: | 2056.05 |
2056.10 | |
2056.20 | |
Limit switches: | included |
Zero-point control: | 9100 |
Encoder : | incremental |
absolute | |
Control system: | 9300 |

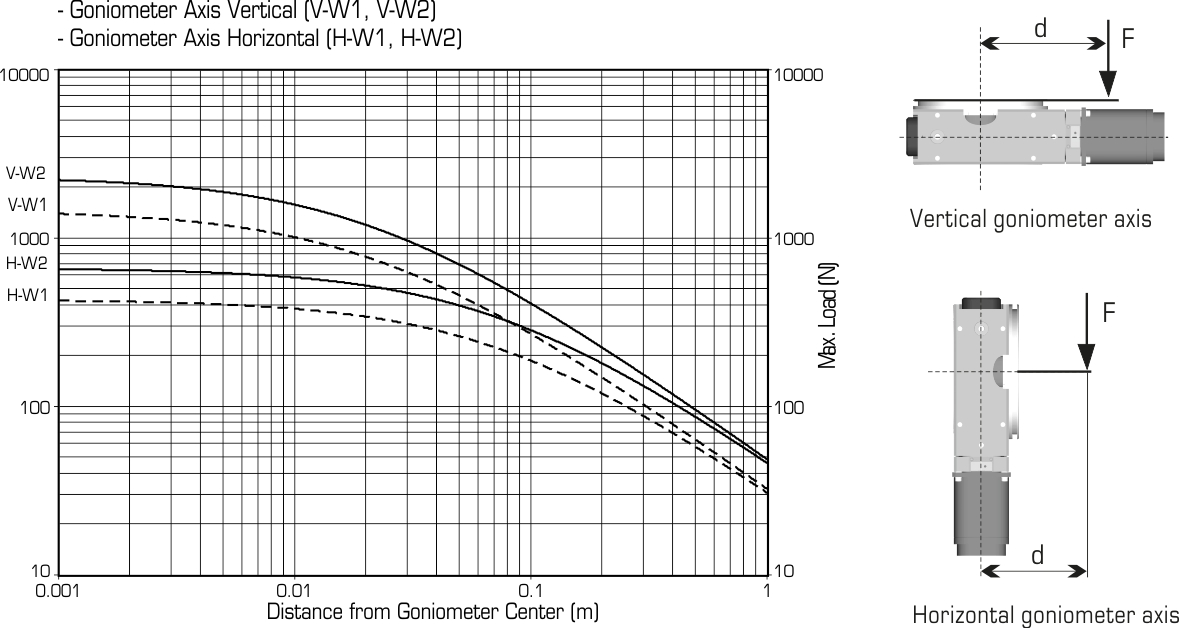

Load configurations:
vertical gonio. axis | horizontal gonio. axis | |
Max. load [N] | 1450 | 410 |
Max. load [N] | 2300 | 650 |
- vertical goniometer axis (V-, V-)
- horizontal goniometer axis (H-, H-)
Specifications:
Travel range [°]: | 360 |
Material (housing/worm gear): | Aluminium/Bronze |
Gear ratio: | 360:1 / 180:1* |
Resolution [°]: | 0.001 / 0.002* ** |
0.00005 / 0.0001* minimum (with gear box 20:1) | |
Min. drive torque [Nm]: | 0.10 / 0.13* |
Max. output torque [Nm]: | 3 / 5* |
Stiffness [µrad/Nm]: | 3 |
Weight [kg]: | 4 |
Flange size [mm]: | 56 |
Transm. aperture [mm]: | 20 (standard) — 82 |
* values concerning 1-Circle Goniometer 410A
** step motor, 1000 steps/revolution
