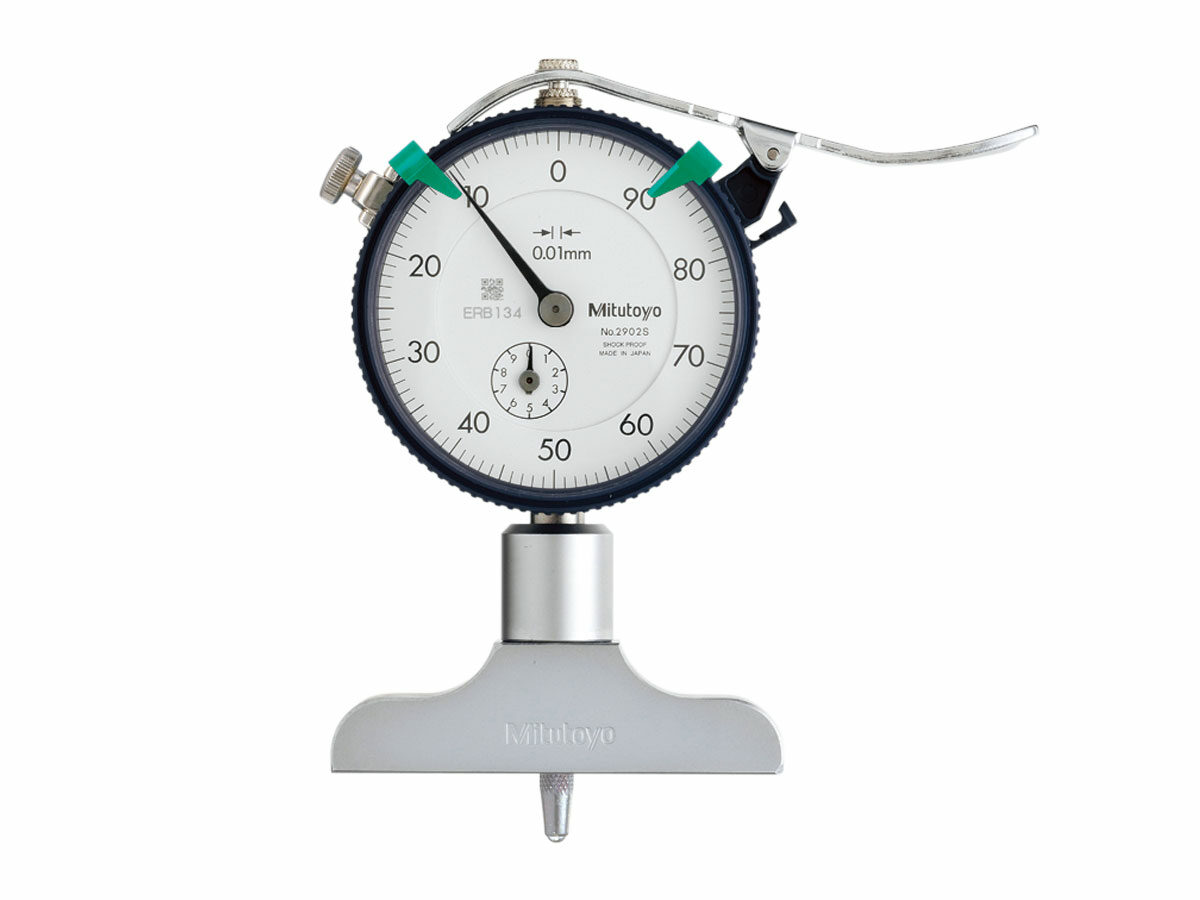

The Mitutoyo dial depth gage features a redesigned white dial face that is quick and easy to read measurements in fine units. The included extension rods allow for measurements up to 200mm/8”. The contact point for the depth gage is carbide tipped and its bottom surface is hardened, ground and lapped for better precision and wear resistance. Some models have a back-plunger type dial for upward-facing readings and a needle probe.
- Available in Metric and Inch models
- Choose between carbide-tipped ball point and needle point measuring rods
- Lock screw holds the slider in position for accurate measurement
- Supplied with a fitted plastic case
| Order No.: | Units: | Measuring Force: | Range: | Graduation: | Accuracy: | Flatness of reference surface base: | Stroke: | Extension rods: | Base size: | Base size diameter: | Optional Accessories: | |
|---|
| 7210A | Metric | 1.4N / 1.4N | 0-10mm | 0.01mm | ±15µm | 5µm | 10mm | — | 40 x 16mm | — | — |
| 7211A | Metric | 1.4N / 1.4N | 0-200mm | 0.01mm | ±15µm | 5µm | 10mm | 10, 20, 30, 100 | 63.5 x 16mm | — | — |
| 7212A | Metric | 1.4N / 1.4N | 0-200mm | 0.01mm | ±15µm | 5µm | 10mm | 10, 20, 30, 100 | 101.6 x 16mm | — | — |
| 7213A | Metric | 2.5N / 2.5N | 0-210mm | 0.01mm | ±30µm | 5µm | 30mm | 30, 60, 90 | 63.5 x 16mm | — | — |
| 7214A | Metric | 2.5N / 2.5N | 0-210mm | 0.01mm | ±30µm | 5µm | 30mm | 30, 60, 90 | 101.6 x 16mm | — | — |
| 7217A | Inch | 2.5N / 2.5N | 0-8″ | 0.001″ | ±0.002″ | 5µm / 0.0002″ | 1″ | 1, 2, 4 | 2.5 x 0.63″ | — | — |
| 7218A | Inch | 2.5N / 2.5N | 0-8″ | 0.001″ | ±0.002″ | 5µm / 0.0002″ | 1″ | .5, 1, 2 | 4 x 0.63″ | — | — |
| 7220A | Metric | 1.4N / 1.4N | 0-200mm | 0.01mm | ±15µm | 5µm | 10mm | 10, 20, 30, 100 | 100 x 18mm | — | — |
| 7221A | Metric | 1.4N / 1.4N | 0-200mm | 0.01mm | ±15µm | 5µm | 10mm | 10, 20, 30, 100 | 150 x 18mm | — | — |
| 7222A | Metric | 1.4N / 1.4N | 0-10mm | 0.01mm | ±15µm | 5µm | 10mm | — | — | 16mm | — |
| 7223A | Metric | 1.4N / 1.4N | 0-10mm | 0.01mm | ±15µm | 5µm | 10mm | — | — | 25mm | — |
| 7224A | Metric | 1.4N / 1.4N | 0-10mm | 0.01mm | ±15µm | 5µm | 10mm | — | — | 40mm | — |
| 7231A | Metric | 1.4N / 1.4N | 0-200mm | 0.01mm | ±15µm | 5µm | 5mm | 10, 20, 30, 100 | 63.5 x 16mm | — | — |
| 7237A | Inch | 1.4N / 1.4N | 0-8″ | 0.001″ | ±0.002″ | 5µm / 0.0002″ | 0.2″ | 1, 2, 4, 0.5 | 2.5 x 0.63″ | — | — |
| 7238A | Inch | 1.4N / 1.4N | 0-8″ | 0.001″ | ±0.002″ | 5µm / 0.0002″ | 0.2″ | 1, 2, 4, 0.5 | 4 x 0.63″ | — | — |
