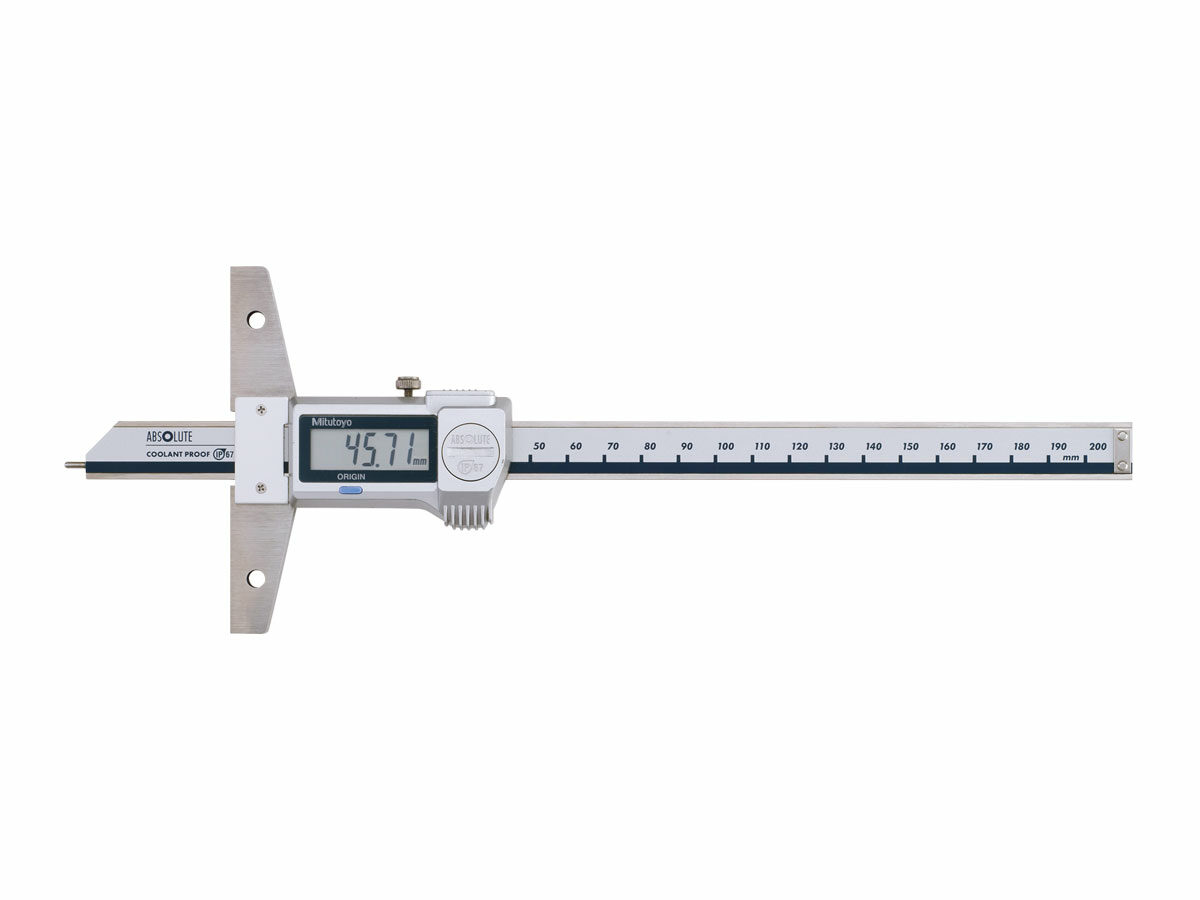

The Mitutoyo ABSOLUTE Digimatic point-type depth gage features a hardened stainless steel measuring rod that is highly durable and accurate for measuring inside narrow holes. The measuring faces and base are micro-lapped for improved accuracy and wear resistance. The depth gage scale is constructed of hardened stainless steel and IP67 rated for exceptional coolant-proof capabilities, making it ideal for use on the shop floor.
- Available in Metric and Inch/Metric models
- Optional wider extension bases are available (up to 450mm range models)
- Convenient mounting holes included on the base for repeatable accuracy
- Keeps track of the origin point for the life of the battery
- 20,000 Hour battery life under normal conditions
- SPC output function with optional water-resistant SPC cable allows for quick and easy data management in real time
- ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on, overspeed errors are also eliminated
- Functions include Origin Set, Zero Setting, Automatic Power On/Off and inch/mm conversion (on inch/metric models only)
- Alarm: Low Voltage, Counting Value Composition Error
- Constructed of hardened stainless steel for better durability and longevity
- IP67 protection eliminates dust ingress, protects against temporary water submersion, permits use in environments exposed to cutting oil, dust, etc.
- Unnecessary to wipe or clean the scale
- Supplied with a fitted plastic case
| Order No.: | Product Image: | Units: | Range: | Resolution: | Accuracy: | Repeatability: | |
|---|
| 571-301-20 | — | Metric | 0-150mm | 0.01mm | ±0.02mm | 0.01mm |
| 571-302-20 | — | Metric | 0-200mm | 0.01mm | ±0.02mm | 0.01mm |
| 571-311-20 | — | Metric, Inch | 0-150mm / 0-6″ | 0.01mm / 0.0005″ | ±0.02mm / ±.001″ | 0.01mm / 0.0005″ |
| 573-312-20 | — | Metric, Inch | 0-200mm / 0-8″ | 0.01mm / 0.0005″ | ±0.02mm / ±.001″ | 0.01mm / 0.0005″ |
| 571-301-20 |
| 571-302-20 |
| 571-311-20 |
| 573-312-20 |
Технические характеристики
| Technology: | Digimatic |
|---|
| Length Standard: | ABSOLUTE electromagnetic induction type linear encoder |
|---|
| Max Response Speed: | Unlimited |
|---|
| Display: | LCD |
|---|
| Battery: | SR44 (1 pc.) 938882 |
|---|
| Battery life: | Approx. 20,000 hours under normal use |
|---|
| IP Rating: | IP67 |
|---|
| SPC Output: | Yes |
|---|
| Mass: | 207g |
|---|
| Optional Accessories: | 05CZA624, 05CZA625 |
|---|
