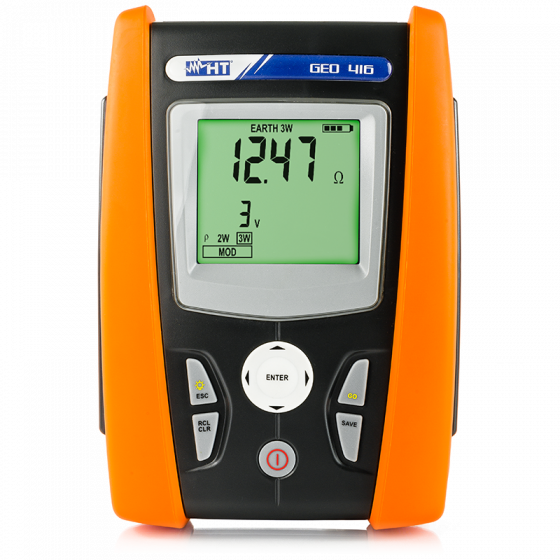

GEO 416 HT Instruments Ground
GEO416 Earth Ground Tester with Storage and Downloand capabilities
Features:
- Earth Ground Tester with Storage and Downloand capabilities
- GEO416 measures earth resistance with 2 wires, 3 wires and 4 wires by voltammetric method and ground resistivity with storage and download capabilities.
- The 2-wire method, by taking advantage of appropriate external masses as a reference (metal surfaces, tubes, neutral conductor, etc.), is particularly useful in private environments where, because of logistic problems, it is not possible to use the 3-wire method. The device allows carrying out measurements with a wide measuring range (up to 50kOhm) with an efficient internal compensation of the disturbance effects found on the installations. GEO416 is provided with an internal memory for saving measurements and with an optical/USB interface for transferring measured data onto the PC
Specifications:
Functions
- TRMS
- Measuring range 50KΩ
- Earth resistance by 2- and 3-wire method
- Ground resistivity by 4-wire method
- Compensation of disturbance voltages
- Compensation of test cables
- Protection category CAT III 240V
- Detection of disturbance currents on measurement
- LCD display
- Backlight
- Auto Power OFF
- Help on line on the display
- Internal memory for measured data saving
- Optical/USB serial port for PC connection
- Size (LxWx H) (mm) 225x165x75
- Weight in grams (batteries included) 1000
Guidelines
- CEI 64-8
- CEI 64-8 612.6.2
- CE MARK
- DPR 462 del 22/10/2001
- EMC 2014/30/EU
- EMC: IEC/EN61326
- IEC/EN61010-1
- IEC/EN61557-1
- IEC/EN61557-5
- LVD 2014/35/EU
Технические характеристики
| Manufacturer | HT Instruments |
|---|---|
| Condition | New |
