Additional Features:
Output Signals
- RF L1: 1575.42 MHz
- IF: 112.53. MHz
- C/A: 1.023 MHz CHIP RATE (TTL)
- Clock: 00.23 MHz (TTL)
- Data Rate and BIT Stream (TTL)
- Doppler Frequency (TTL)
- C/A EPOCH 1 kHz (TTL)
Input Signals
- C/A Code Sync (TTL)
- Data Sync (TTL)
- EXT 100.23 MHz (TTL)

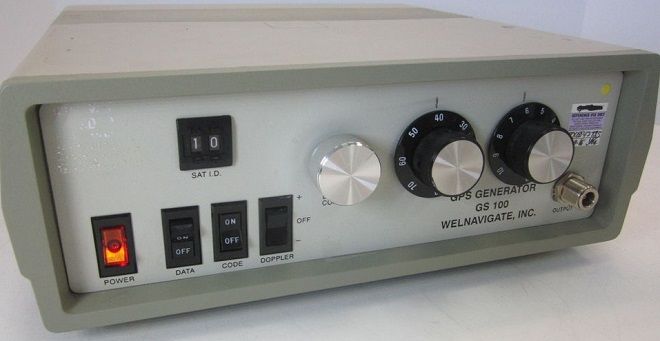

The Welnavigate GS100 is a single channel GPS Signal Simulator/Generator. The GS100 has been designed to provide a low-cost and effective method of testing GPS receiver hardware. Generating the L1 C/A code signal, the GS-100 will allow you to emulate the 374 pseudo-random codes as specified in ICD-200B, with the ability to control doppler, code, and data, a diverse signal can be sent continuously to the receiver.
Технические характеристики
| Manufacturer | WelNavigate |
|---|---|
| Condition | Used |
