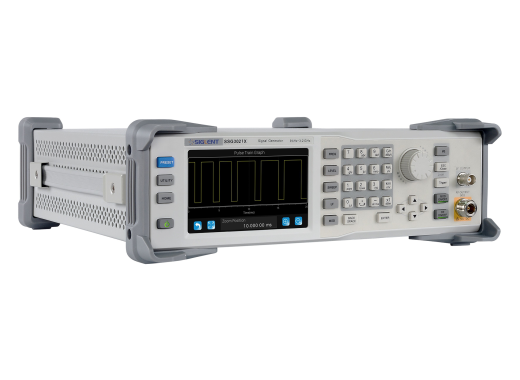

The Siglent SSG3021X-IQE RF signal generator belongs to the SSG3000X series and has a bandwidth (CW) of 9 kHz — 2.1 GHz and a bandwidth (IQ) of 10MHz — 2.1 GHz.
Siglent’s SSG3000X series is a series of new high-end signal generators. These generators have a large bandwidth and a small frequency resolution. This series offers all the necessary equipment for sweep control and normal analogue modulation such as AM, FM, and PM. Furthermore, these generators also offer a function for pulse modulation and a pulse generator.
The generators can be operated via the buttons and the 5′ TFT touchscreen display but also with the mouse and keyboard. Furthermore, the generator can be operated externally via USB, LAN and optional GPIB interfaces and operation via a web browser on a PC or mobile interface is also supported. The ‘-IQE- models of this series can also generate IQ-modulated signals in cooperation with a baseband generator such as the Siglent SDG6000X series.
This series is an excellent choice for R&D, education and production purposes.
Model overview
The models in the SSG3000X series differ mainly in bandwidth. The major differences in specifications are listed in the table below.
Model SSG3021X SSG3021X-IQE SSG3032X SSG3032X-IQE Bandwidth (CW) 9 kHz — 2.1 GHz 9 kHz — 2.1 GHz 9 kHz — 3.2 GHz 9 kHz — 3.2 GHz Bandwidth (IQ) No 10 MHz — 2.1 GHz No 10 MHz — 3.2 GHz Price (incl. BTW) 1999 €1,999.00 Excl. VAT 4299 €4,299.00 Excl. VAT 3499 €3,499.00 Excl. VAT 5699 €5,699.00 Excl. VAT Specifications Frequency precision 0.01 Hz Output amplitude range -110 dBm up to +13 dBm Amplitude precision 0.01 dB Phase noise-110 dBc/ Hz @ 1 GHz Pulse modulation, on/off ratio>,70 dBc Frequency sweep
Vorm
Mode
Triangle, saw-tooth
Single, continuous Trigger sourceAuto, keyboard, extern connector, bus Frequency resolution10 MHz Output impedance50 InterfacesUSB Host/Device, Lan, Optional GPIB Display5′ capacitive touchscreen (800×480) Dimensions338 x 113 x 369 Weight4.84 kg Options USB to GPIB With this option, you can can control the function generator through GPIB. USB-GPIB 123 €123.00 Excl. VAT Info Add to Cart Accessories The Siglent SSG3021X-IQE comes with the following accessories:
- Quick start
- USB cable
- Calibration certificate
- Power cord
