Note: All products in the series look identical to the one shown in the images. I/Q capable models have the additional I/Q BNC connectors on the back side.

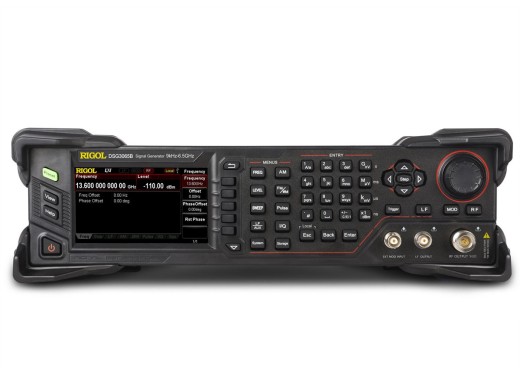

The Rigol DSG3136B is a high-end RF signal generator with a frequency range of up to 13.6 GHz. It can modulate AM, FM and phase (ΦM). With an output power which goes up to +27 dBm it eliminates the need for external amplifiers in high-power setups. Modulation can be provided externally. USB and LAN ports for connectivity are available on the back side. The unit is of standard 2U height in order to save rack space.
Model overview
The DSG3000B series models differ in their bandwidth and whether they modulate I/Q. The most important differences can be found below:
Model DSG3065B DSG3065B-IQ DSG3136B DSG3136B-IQ Modulation functions AM, FM, phase AM, FM, phase, I/Q AM, FM, phase AM, FM, phase, I/Q RF frequency range 9 kHz — 6.5 GHz 9 kHz — 6.5 GHz 9 kHz — 13.6 GHz 9 kHz — 13.6 GHz I/Q frequency range — 50 MHz — 6.5 GHz — 50 MHz — 6.5 GHz Price 7299 €7,299.00 Excl. VAT 10599 €10,599.00 Excl. VAT 11799 €11,799.00 Excl. VAT 16399 €16,399.00 Excl. VAT Specifications Frequency resolution 0.01 Hz Output amplitude range -130 dBm up to +27 dBm (max) Amplitude precision <,0.5 dB Phase noise-116 dBc / Hz (@ 1 GHz, 20 kHz offset) Pulse modulation, on/off ratio>,70 dB Frequency sweep shapetriangle, ramp Frequency sweep modesingle, continuous Trigger sourceauto, keyboard, external connector, bus (USB, LAN) Output impedance50 InterfacesUSB Host/Device, LAN
option: GPIB Display4.3′, 480 x 272 px. colour LCD Dimensions364 x 112 x 420 mm Weight7.61 kg Accessories
The DSG3000B series are delivered including:
- Power cord
