Additional Features:
- Independent control of width and delay on 4 channels
- 1 ns timing resolution
- <, 400 ps channel to channel RMS jitter
- Standard RS232, GPIB & USB communication interfaces
- Advanced programming: multiplexing, channel referencing, burst, wait, duty cycle
- Full Integration Support
- Full 2 Year Warranty

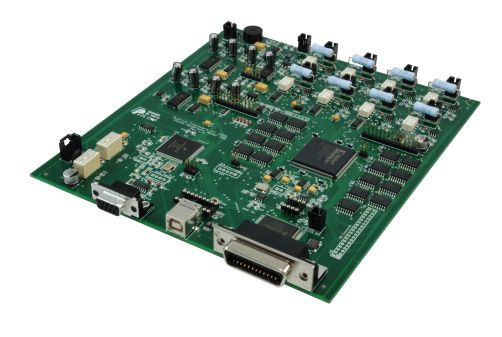

The Model 8514 Board Level Pulse Generator comes with 4 independent outputs and is designed to provide cutting edge, cost-effective solutions to generate and synchronize multiple pulses for a variety of applications. The delay and pulse width for each channel are independent and digitally controlled which makes the instrument ideal for situations that require synchronizing a number of different timed events. Flexible operating modes allow complete control of pulse outputs, including continuous, duty cycle, burst and single shot with external trigger/gate.
More advanced features such as multiplexing allow the timing of all or several channels to be combined for complex pulse patterns. Control of the instrument is provided through the standard RS232, USB and GPIB Interfaces.
Технические характеристики
| Manufacturer | Quantum Composers |
|---|---|
| Condition | New |
