| AC Input-Single Phase 230VAC |
| AC Input-Three Phase 208VAC |
| AC Input-Three Phase 400VAC |
| IEEE Multi-Drop Interface |
| Current Programming with 4-20mA signal |
| Voltage Programming, user-selectable 0-5V or 0-10V signal |
| LAN Interface |
| Multi-Drop Slave Option |
| USB Interface |
Additional Features:
- Voltage: 0-600V
- Current: 0-5.5A
- Power: 3300W
- High Power Density 3.3kW in 2U
- Wide Range of popular worldwide AC inputs, 1Ø(230VAC) & 3Ø(208VAC, 400VAC)
- Active Power Factor Correction (Single-Phase & Three-Phase AC Input)
- Built-in RS-232/RS-485 Interface Standard
- Last Setting Memory, Front Panel Lockout
- Advanced Parallel reports total current up to four identical units
- Global Commands for Serial RS-232/RS-485 Interface
- Reliable Encoders for Voltage and Current Adjustment
- Independent Remote ON/OFF and Remote ENABLE/DISABLE
- Reliable Modular and SMT Design
- 19″ Rack mounted
- Optional Interfaces: Isolated Analog Programming and Monitoring, IEEE Multi-Drop-SCPI, LXI Compliant LAN Interface, USB Interface
- Labview and LabWindows drivers

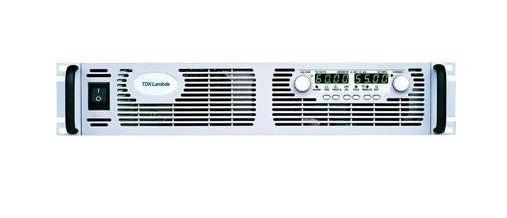

The Lambda GEN600-5.5 is a programmable AC/DC power supply that sets a new standard for flexible, reliable, power systems in OEM, Industrial and Laboratory applications. Active PFC, Standard RS-232/RS-485 and world-wide inputs head a long list of standard features.
This member of the Genesys product family of programmable switching power supplies provides high power density, low ripple and a complete set of user-friendly interfaces. In addition to high power density, popular worldwide single and three phase inputs are available. Inputs are available for either 230 VAC — single phase or 208 VAC or 400 VAC — three phase, 50/60 Hz with Active Power Factor Correction of 0.99 single phase and 0.92-0.94 three phase. This assures operation in difficult AC environments and meets European EMC requirements.
Технические характеристики
| Manufacturer | Lambda |
|---|---|
| Condition | Used |
| Current | 5.5 A |
| Voltage | 600 V |
| Power | 3.3 kW |
