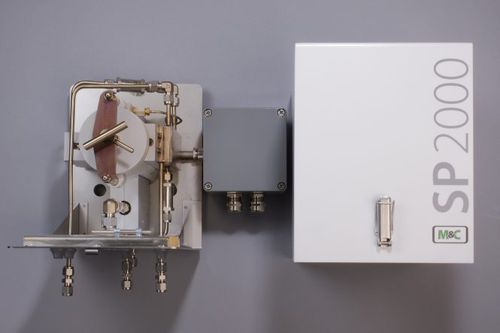

— Heated gas sample dilution probe for sampling and dilution of process gas — With a dilution ratio of 30:1 as standard, optionally in the range from 10:1 to 500:1 — Dilution gas pre-heater preheats the dilution gas to the sample probe temperature — Dilution unit with critical orifice is located in the heated part of the sample probe — With test gas connection at the sample probe — Based on gas sample probe SP2000H — With Fe‑CuNi thermocouple, external temperature controller optional — Filter housing and mounting flange made of stainless steel can be heated up to max. +320 °C [+608 °F] — Ceramic filter element with a filter porosity of 2 µm — Including weather protective cover — Easy installation and low maintenance — Low dead volume — Power: 230 V — Material of sample-contacting parts: stainless steel, quartz glass, graphite, ceramic — Optionally: temperature controller, add-on set A with 1 precision pressure controller and 2 vacuum pressure gauges, control panel S with 1 pressure controller and 2 pressure gauges, 1 flow meter and 2 shut-off valves Gas sample dilution probe type SP2000‑H320/DIL with external ceramic filter type S‑2K150, filter porosity: 2 µm, electrically heated external filter 0 to 320 °C, thermo couple: Fe‑CuNi, filter element and cover seal out of graphite, incl. weather protection shield with insulation, power: 230 V/50 Hz, 800 W, mounting flange: DN 65 PN 6B with G 3/4′ f connection, sample gas OUT: tube 8 mm, material: SS 316Ti, ceramics, graphite, dilution ratio to be indicated with the order
Технические характеристики
CharacteristicsTypegas samplingTechnologythermocoupleDomainprocessOther characteristicswith dilution unit
