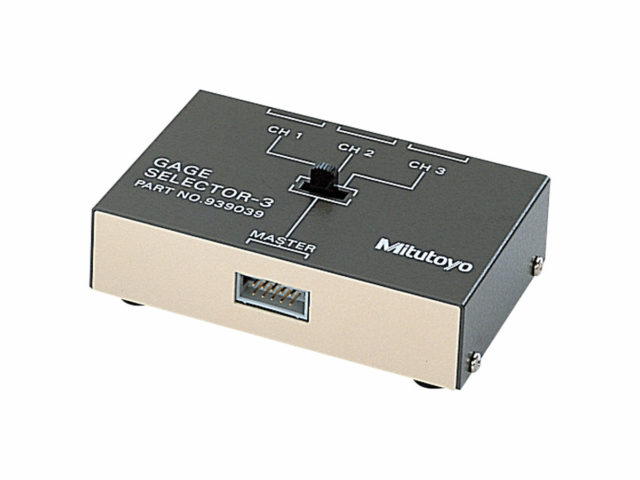

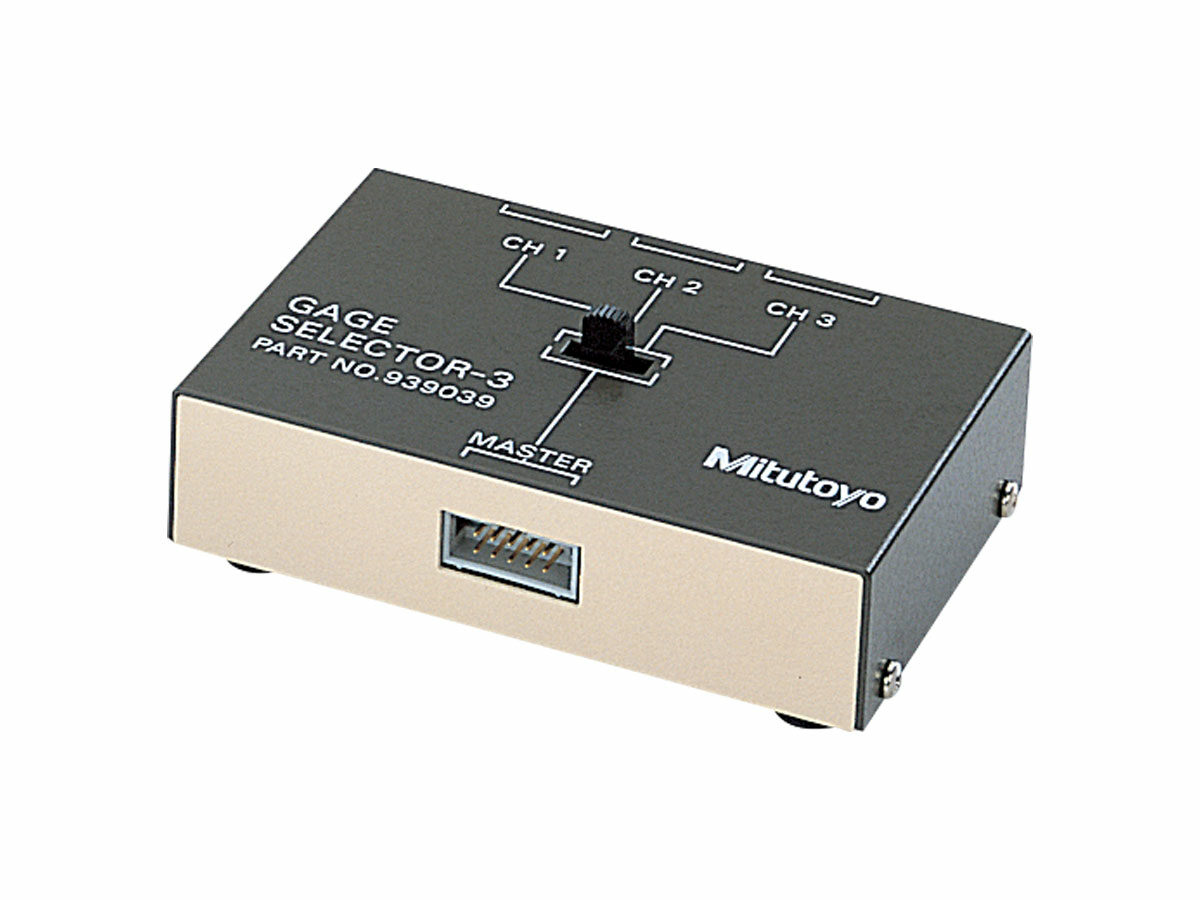

The Mitutoyo Gage Selector 3, a three-channel data transmission switching box, allows users to connect three Digimatic gages for output to either a PC or Digimatic Mini-Processor DP-1VR. Users can then specify which Digimatic gage they want to output data from with the easy-to-use switch on the unit.
- Connects up to three digital measuring gages
- Specifies which gage outputs the data with the channel switch
- Optional Mitutoyo Input Tool is needed for data output to a PC
- Channel switch and inputs are clearly marked for easier use
| Order No.: | Product Image: | Gage Capacity: | Signal: | Connection: | Dimensions: | Requires SPC Cables: | |
|---|
| 939039 | — | Up to three gages | Digimatic code format | Bidirectional | 100 x 70 x 33mm | Yes |
