Description

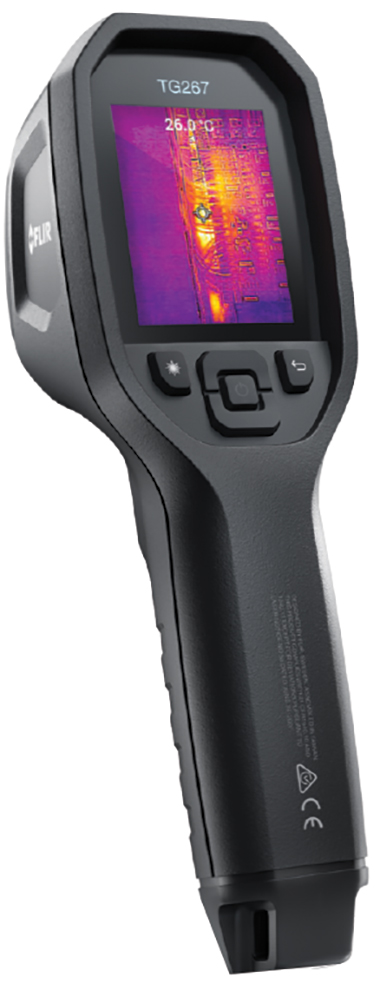

The FLIR TG267 Thermal Camera allows users to see and evaluate the hot and cold spots that can indicate serious issues. Examine everything from electrical connections to mechanical breakdowns quickly and accurately. A 2.4 inch color display reduces diagnostic time while simplifying repair and maintenance reporting. FLIR MSX® (Multi-Spectral Dynamic Imaging) enhancement improves image clarity by embossing visual scene details on full thermal images, providing added context to help you accurately target potential faults and troubleshoot repairs. Recording function allows the comparison of before-and-after stored images with FLIR Tools® software to demonstrate problems and confirm when problems are resolved.
Applications for the TG267 include:
- Commercial electrical
- Facility maintenance
- Identification of mechanical wear
- HVAC
Технические характеристики
Features
- Bullseye laser pointer
- MSX® image enhancement
- 19,200 Pixels (160 x 120)
- 24:1 distance to spot ratio
- -13 to 716°F (-25 to 380°C) measuring range
- 57° × 44° field of view
- ±1.5% or 1.5°C accuracy
- IP54 enclosure
- Built to withstand a 2 meter drop
Looking for a fever screening solution? Here’s a list of approved items.
What’s in the Box
- Camera
- Wrist strap lanyard
- USB cable
- Pouch
- Type-K thermocouple
