Product Family Description
- OD 6.0 Blocking at Laser Wavelengths from 405 to 1064nm
- 300m Maximum Thickness

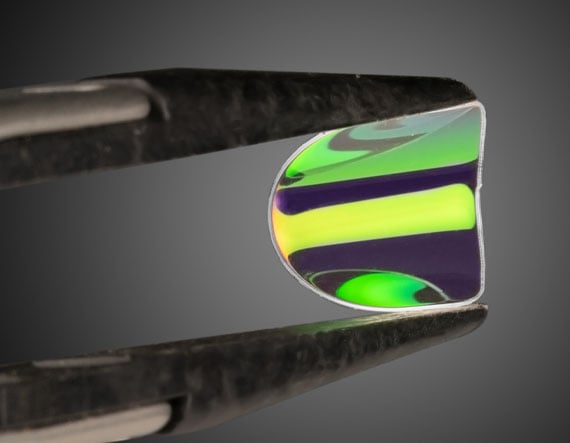

- Flexible and Scratch Insensitive
Everix Ultra-Thin OD 6.0 Notch Filters have a maximum thickness of 300 microns and provide the same deep OD 6.0 blocking as traditional notch filters. Constructed from layers of ultra-thin polymers and dyes, these filters are scratch insensitive and can be flexed to conform to curved surfaces. Outside of their OD 6.0 blocking bandwidth, these filters provide high throughput with >,85% average transmission. Everix Ultra-Thin OD 6.0 Notch Filters are available with center wavelengths corresponding to common laser wavelengths, including 405nm, 532nm, 633nm, 785nm, and 1064nm. These notch filters are ideal for integration into space or weight sensitive devices as well as general laser-based Raman spectroscopy systems.
Note: All Everix standard products are available exclusively from Edmund Optics for immediate purchase. Custom filter designs can be purchased directly from Everix.
Технические характеристики
Diameter (mm): 12.50 +0.1/-0.2 Optical Density OD (Average): ≥6.0 Center Wavelength CWL (nm): 1064.00 ±,21.28 Full Width-Half Max FWHM (nm): 85.12 (maximum) Transmission (%): Tavg >85% @ 600 — 1005.5nm, 1122.5 — 1300nm Transmission Wavelength (nm): 600 — 1300 Type: Notch Filter Clear Aperture (%): >90 Maximum Thickness (&mu,m): 400
Regulatory Compliance RoHS: Compliant Certificate of Conformance: View
