Description
Features:

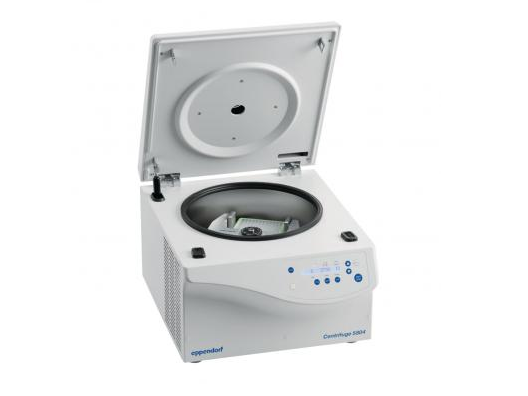

The Centrifuge 5804 is a high speed centrifuge used for medium capacity needs. It can be used for molecular applications in tubes up to 250 mL and it also offers additional swing-bucket and fixed-angle rotors as well as deepwell plate capacity for increased versatility.
Specifications:
- Dimensions (W x D x H): (47 x 55 x 34 cm)
- Footprint (dimensions w/o front panel, WxD): 47 x 50 cm
- Height (with open lid): 74 cm
- Speed: 200 – 14,000 rpm (10 rpm steps)
- Max. RCF: 20,913 x g
- Max. RCF with fixed-angle rotor: 20,913 x g
- Max. RCF with swing-bucket rotor: 4,500 x g
- Max. RCF with plate rotor: 2,250 x g
- Max. capacity: 4 x 250 mL/2 x 5 MTP
- Rotors available: 12
- Acceleration/braking ramps: 10/10
- Number of programs: 35 user-defined programs
- Timer: 1 min to 99 min, with continuous run function, short-spin
- Noise level: <, 62 dB(A)
- Power supply: 120 V, 50 – 60 Hz
- Max. power consumption: 900 W
- Cooling: non-refrigerated
