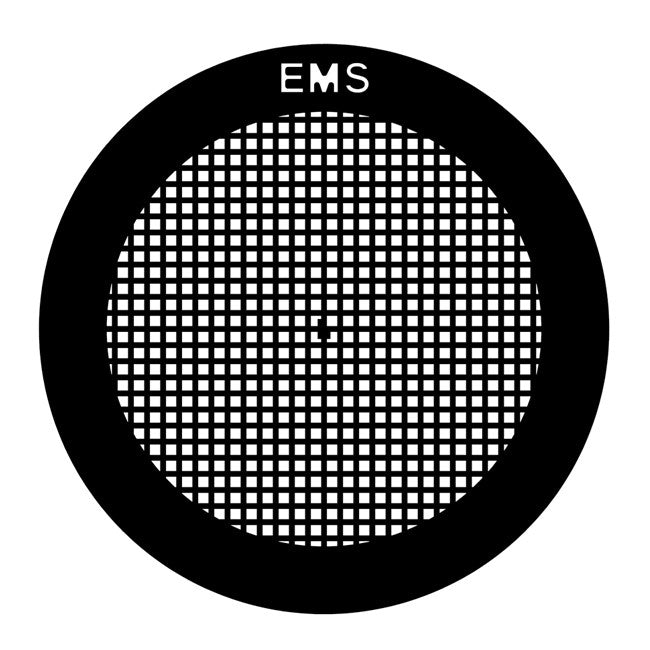

EMS Square Mesh Grids
3.05mm diameter, see chart for thickness.
Material: Copper (Cu), Copper-Rhodium (Cu-Rh), Nickel (Ni), Gold (Au), Molybdenum (Mo)
Technical Data µm Type Cat# Thinkness Pitch Hole Bar 200 mesh
EMSEMS200-Cu Up to 27µm, +/-5µm 125 90 35 EMSEMS200-Cu-Rh Up to 27µm, +/-5µm 125 90 35 EMSEMS200-Ni Up to 27µm, +/-5µm 125 90 35 EMSEMS200-Au 11µm, +/-2µm 125 90 35 EMSEMS200-Mo 25µm, +/-4µm 125 90 35 300 mesh
EMSEMS300-Cu Up to 19µm, +/-5µm 83 58 25 EMSEMS300-Cu-Rh Up to 19µm, +/-5µm 83 58 25 EMSEMS300-Ni Up to 19µm, +/-5µm 83 58 25 EMSEMS300-Au 10µm, +/-2µm 83 58 25 EMSEMS300-Mo 25µm, +/-4µm 83 58 25 400 mesh
EMSEMS400-Cu Up to 19µm, +/-5µm 62 37 25 EMSEMS400-Ni Up to 19µm, +/-5µm 62 37 25 EMSEMS400-Au 9µm, +/-2µm 62 37 25 EMSEMS400-Mo 25µm, +/-4µm 62 37 25
