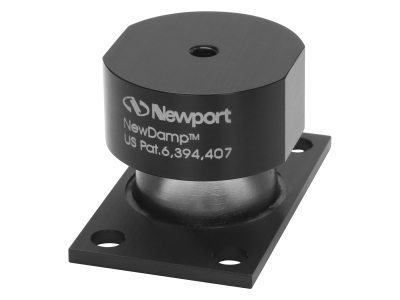

The ND01-A NewDamp Elastomeric Isolator supports 70 to 250 lb. loads and provides excellent CNF (constant natural frequency) characteristics. The ND01-A has a 1.36 inch height and a 2.5 x 1.5 inch base. The vertical natural frequency is virtually constant at approximately 22 Hz for loads above 70 lbs per isolator. This compact size isolator ensures excellent horizontal isolation with natural frequencies of 5 to 7 Hz and minimum resonance amplification. Breadboard Microlock compatible.
Технические характеристики
- Load Capacity per Isolator 115 kg
- Minimum Isolator Load 30 kg
- Isolator Height 1.36 in.
- Interface Compatibility Breadboard, Microlock
- Base size 2.5 x 1.5 in.
- Natural Frequency, Vertical Max. 22 Hz
- Natural Frequency, Vertical Min. 21 Hz
- Natural Frequency, Horizontal Max. 7 Hz
- Natural Frequency, Horizontal Min. 5 Hz
