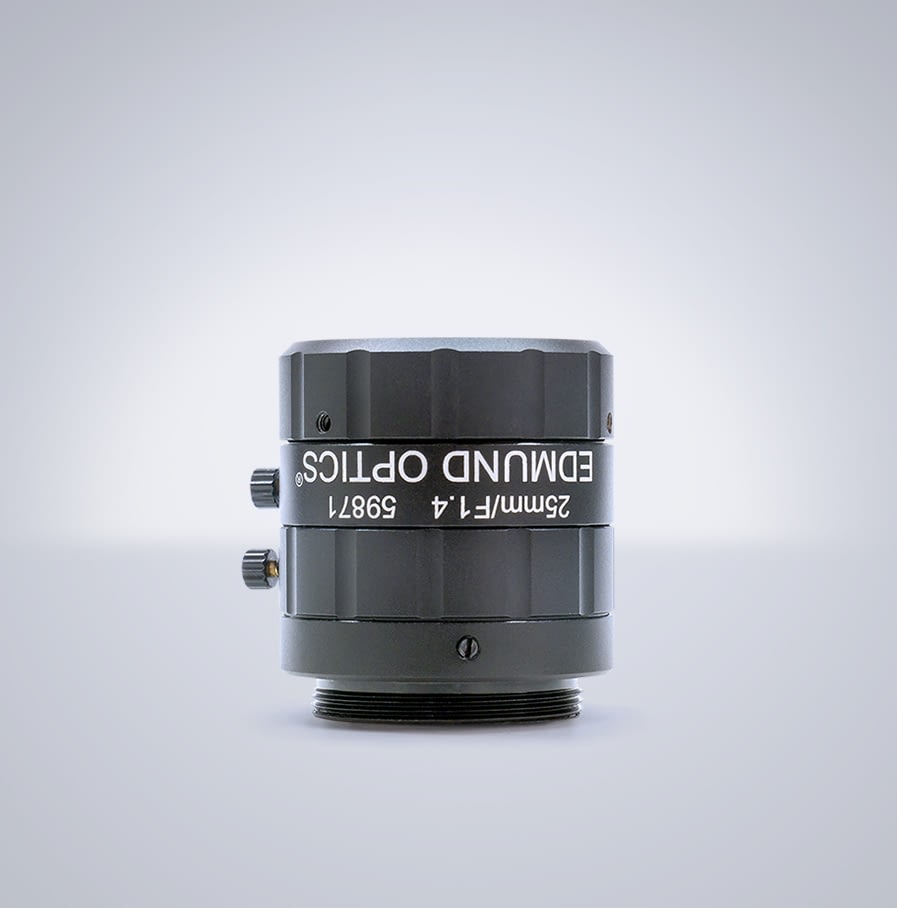

| Edmund Optics Model # | 59-871 |
|---|---|
| LUCID SKU: | EOC0250 |
| Focal Length | 25 mm |
| Field of View @ Max Sensor Format | 36.6mm 19.7° |
| Distortion(%) | |
| Working Distance | 100mm ∞ |
| Field of View, 1/2 Sensor: | 26.5mm 14.4° |
| Field of View, 1/3 Sensor: | 19.9mm 10.9° |
| Field of View, 2/3 Sensor: | 36.6mm 19.7° |
| Number of Elements (Groups) | 7 (6) |
| Type | Fixed Focal Length Lens |
| Maximum Length | 30.5 mm |
| Maximum Sensor Format | 2/3 |
|---|---|
| Coating | 425 675nm BBAR |
| Field of View, 1/1.8 Sensor | 29.9mm 16.2° |
| Field of View, 1/2.5 Sensor | 24.0mm 13.1° |
| Field of View, 1/4 Sensor | 14.9mm 8.1° |
| Aperture (f/#) | f/1.4 f/16 |
| Mount | C-Mount |
| Numerical Aperture NA, Object Side | 0.023 |
| Outer Diameter | 31.0 mm |
| Weight | 49 g |
| Fixing Knobs Bundled | 4 total: 2x normal, 2x recessed |
