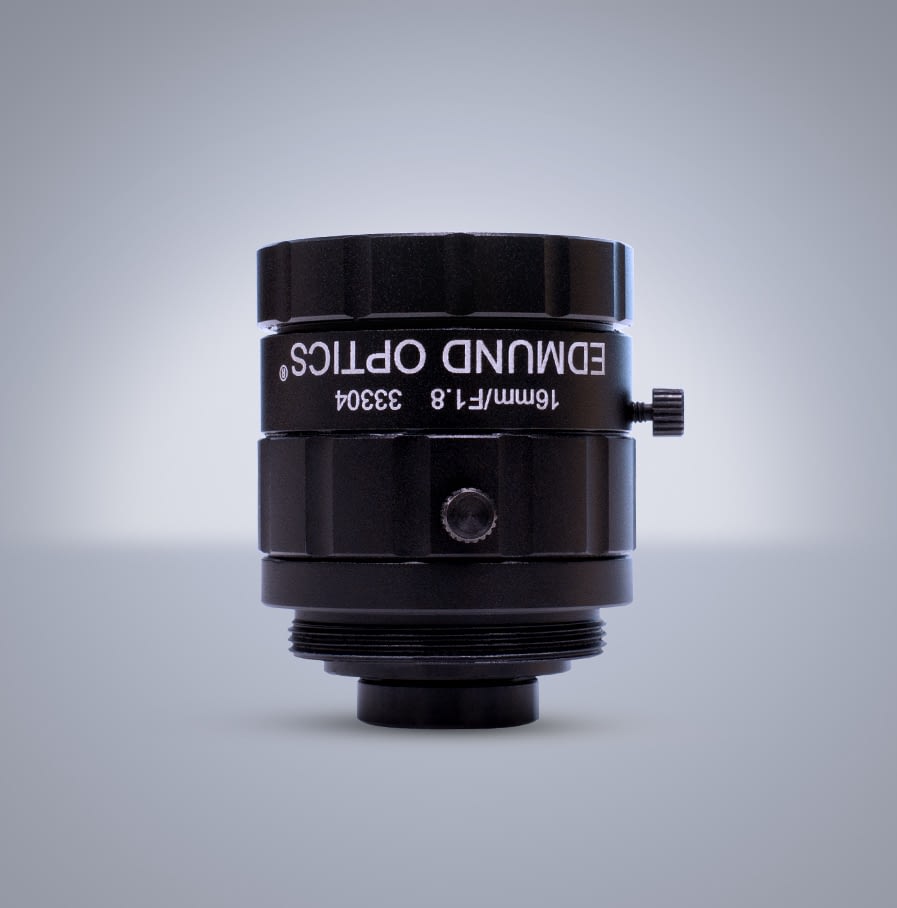

| Edmund Optics Model # | 33-304 |
|---|---|
| LUCID SKU: | EOUC160 |
| Focal Length | 16 mm |
| Field of View @ Max Sensor Format | 98.5mm 25.3° |
| Working Distance | 200 mm ∞ |
| Distortion(%) | |
| Field of View, 1/2 Sensor | 87.6mm 22.5° |
| Field of View, 1/3 Sensor | 65.7mm 17.0° |
| Number of Elements (Groups) | 7 (5) |
| Optimized Sensor Format | 1/2.5 |
| Type | Fixed Focal Length Lens |
| Maximum Length | 29.13mm |
| Maximum Sensor Format | 1/1.8 |
|---|---|
| Coating | MgF2 400-700nm |
| Aperture (f/#) | f/1.8 f/11 |
| Field of View 1/1.8 Sensor | 98.5mm 25.3° |
| Field of View, 1/2.5 Sensor | 79.4mm 20.5° |
| Field of View, 1/4 Sensor | 49.3mm 12.8° |
| Mount | C-Mount |
| Numerical Aperture NA, Object Side | 0.021 |
| Outer Diameter | 30.00mm |
| Weight | 42g |
| Locking Screws Bundled | 4 total: 2x normal, 2x recessed |
