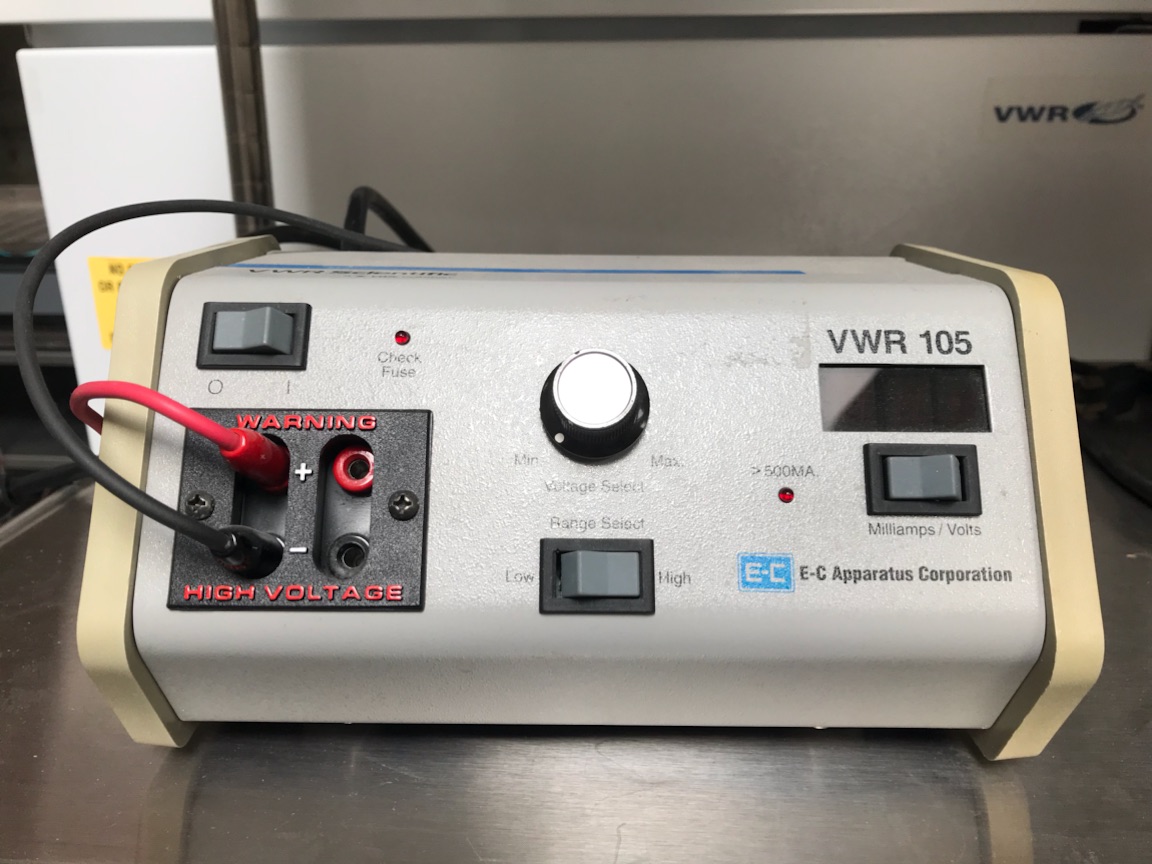

Description
250 Volts and 500 milliAmps DC. Two sets of outputs operate in parallel to provide between 20 and 250 volts, up to 500 milliamps, and up to 75 watts in the constant voltage mode.
Specifications:
- Voltage Steps, Lo Range: 20,30,40,50,60,70,80,90, I00, 110,120, 130
- Voltage Steps, Hi Range: 140,150,160,170,180,190,200,210,220,230,240,250
- Maximum Voltage: 250V
- Maximum Current: 300 mA at 150-250V, 500 mA below 150V
- Maximum Power: 75 watts
- Number of Outputs: 2
- Temperature Range: 0C -40C
- Dimensions: 6 x 8 x 4.5 in
- Weight: 5 lbs
