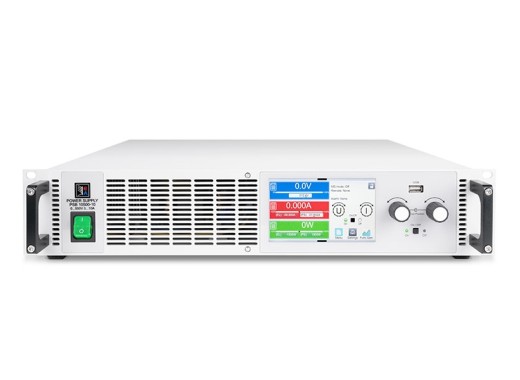

The Elektro Automatik PSB11000-10 bi-directional power supply is a load and power supply in one, it is able to go up to 6A, 1500V & 3000W. This bi-directional power supply is 95% efficient. It also uses 2 quadrants in source & sink which lets you easily and effortlessly switch between load and power supply. The PSB10000 series also includes an integrated function generator with predefined curves. The high-resolution 16-bit ADC, the 5′ colour TFT screen and interfaces such as USB, Analogue, Master/Slave and Ethernet, plus optional interfaces such as CAN, CANopen, RS232, Profibus, Ethercat, Profinet and Modbus, allow you to use the PSB11500-06 for a wide range of applications. For example, automotive with LV123, LV124 and LV148 procedures or battery testing with integrated test mode/battery, fuel cell simulation and solar cell testing. The PSB 10000 series can also deliver energy back into the grid while it is in load mode. This series is able to be placed on a desk or in a rack.
Are you searching for more power? We can deliver the PSB series in any required power output, up to >100kW. Contact us for more information Models
The models differ in maximum voltage, current and output power. Model PSB 10060-60 PSB 10080-60 PSB 10200-25 PSB 10360-15 PSB 10500-10 PSB 10750-06 Voltage 60 V 80 V 200 V 360 V 500 V 750 V Current 60 A 60 A 25 A 15 A 10 A 6 A Output power 1500 W 1500 W 1500 W 1500 W 1500 W 1500 W Price 4500 €4,500.00 Excl. VAT 4500 €4,500.00 Excl. VAT 4500 €4,500.00 Excl. VAT 4500 €4,500.00 Excl. VAT 5200 €5,200.00 Excl. VAT 5200 €5,200.00 Excl. VAT Model PSB 10060-120 PSB 10080-120 PSB 10200-50 PSB 10360-30 PSB 10500-20 PSB 10750-12 PSB 11000-10 PSB 11500-06 Voltage 60 V 80 V 200 V 360 V 500 V 750 V 1000 V 1500 V Current 120 A 120 A 50 A 30 A 20 A 12 A 10 A 6 A Output power 3000 W 3000 W 3000 W 3000 W 3000 W 3000 W 3000 W 3000 W Price 6900 €6,900.00 Excl. VAT 6900 €6,900.00 Excl. VAT 6900 €6,900.00 Excl. VAT 6900 €6,900.00 Excl. VAT 7400 €7,400.00 Excl. VAT 7400 €7,400.00 Excl. VAT 7600 €7,600.00 Excl. VAT 7600 €7,600.00 Excl. VAT Specifications ModeCC, CV, CP, CR Outputs1 Output switchYes Resolution10mV/10mA ProtectionOPP, OCP, OVP, OTP InterfacesUSB, Ethernet, Analog, USB Host, Share-Bus, Master-Slave Bus Display5′ TFT Rack mount19′ & 2U Dimensions482.6 x 88.9 x 559 mm Weight12.7 kg Accessories
- No included accessories
