| 250 kHz to 3 GHz frequency range [electronic attenuator standard] |
| 250 kHz to 6 GHz frequency range [mechanical attenuator only] |
| High output power with mechanical attenuator, |
Additional Features:
- 250 kHz to 3 or 6 GHz (.01 Hz resolution)
- -136 to 17 dBm @ 1 GHz and 10 dBm @ 6 GHz output power
- +/-0.5 to +/-0.9 dB level accuracy (>, -110 dBm)
- -134 dBc/Hz SSB phase noise @ 20 kHz offset, 1 GHz carrier (typ)
- Enhanced phase noise performance (Option UNJ) ships standard
- High-stability timebase: oven-controlled crystal oscillator (OXCO)
- AM, FM, ØM, and pulse (may be simultaneously enabled)
- Typical 6 ns rise/fall times and 20 ns pulse width
- Dual internal function generators: sine, square, triangular, ramp, and noise
- 10BaseT LAN and GPIB
- SCPI and IVI-COM drivers
- Backwards compatible with all ESG signal generators

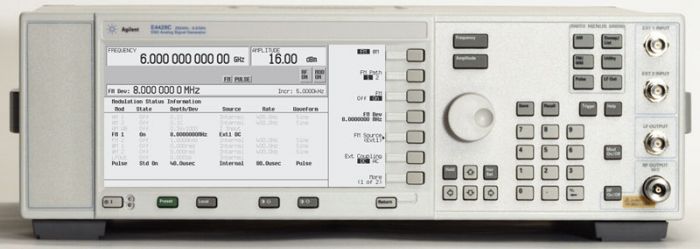

The Agilent E4428C ESG analog signal generator delivers outstanding spectral purity, level accuracy, output power, and analog modulation performance up to 3 or 6 GHz for all general-purpose test needs. This makes the Agilent E4428C ESG a superb choice for general-purpose tests requiring CW, AM, ØM, and FM receiver and component test signals in the cellular, ISM, and UNII frequency bands.
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
| Frequency | 6 GHz |
