| High-stability timebase |
| I/Q Baseband Generator with 8 Mbit Pattern RAM |
Additional Features:
- Frequency range: 250 kHz up to 1 GHz
- Resolution: 0.01 Hz
- Switching Speed Modulation On: <,45 ms, typical Modulation Off: <,35 ms, typical
- Accuracy: Same as timebase
- Flexible, expandable architecture with upgrade path for options
- Electronic attenuator, built-in function generator, superior level accuracy,and step sweep (frequency, power and list)
- Built-in digital modulation formats for DECT, GSM, NADC, PDC, PHS, and TETRA (Option UN3/UN4)
- External analog I and Q inputs
- Versatile data generation with burst capabilities
- Wideband AM
The Agilent E4430A Digital RF signal generator provides a wide range of digital modulation capabilities in addition to a comprehensive feature set and excellent analog performance. The first in a new generation of signal generators, it provides excellent modulation accuracy and stability, as well as unprecedented level accuracy. It is ideally suited to meet the demanding requirements of today»s digital receiver test, component test and local oscillator applications.
The innovative design of the Agilent E4430A provides a flexible architecture that can be tailored to meet the changing demands of evolving markets. Lower initial cost, high reliability and a two-year calibration cycle, all minimize the cost of ownership. The Agilent E4430A digital generator is designed for long-term dependability, which maximizes production throughput and uptime.

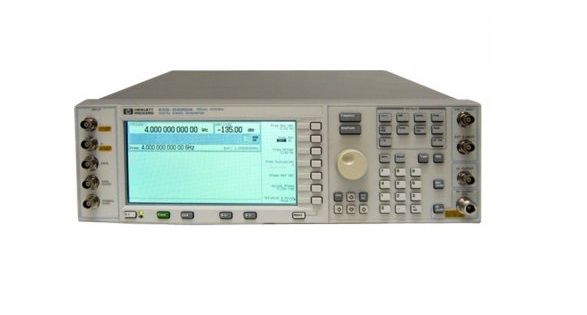

The image is a representation of selection. See specifications for product details.
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
| Frequency | 1 GHz |
