Features:
Output Ratings (Simulator and Table Modes)
- Max. Power: 510 W
- Voc Max.: 65 V
- Isc Max.: 8.5 A
Output Ratings (Fixed mode)
- Max Power: 510 W
- V rated: 0-60 V
- I rated: 0-8.5 A
Programming Accuracy at 22°C ±5°C
- Voltage (Fixed Mode): 0.075% + 25 mV
- Current (Fixed Mode): 0.2% + 20 mA
Ripple & Noise (20 Hz to 20 MHz)
- Voltage rms, p-p (Simulator/Table Mode): 20 mV rms, 125 mV p-p
- Voltage rms, p-p (Fixed Mode): 24 mV rms, 150 mV p-p
- Current rms, p-p (Fixed Mode): 2.5 mA rms, 19 mA p-p

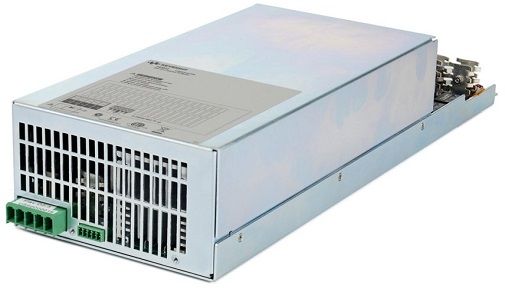

The Keysight E4361A is a 510W solar array simulator DC power module that simulates the output characteristics of a solar array. The E4361A is primarily a current source with very low output capacitance. It offers fast I-V curve changes allowing you to accurately simulate the output of different solar arrays under various environmental conditions (ex. temperature, age, eclipse, spin etc.).
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
