Features:
- Bandwidth: 4 GHz
- Channels: 4
- Max Memory Depth: 800 Mpts (2 channels), 400 Mpts (4 channels)
- Max Sample Rate: 20 GSa/s (2 channels), 10 GSa/s (4 channels)
- Display Size: 15 inch
- ADC Bits: 10 bits
- Noise Floor: 768 ?Vrms at 50 mV/div
- Effective Number of Bits (ENOB): 7.2
- Typical Rise/Fall Time: 107.5 ps (10-90%), 77.5 ps (20-80%)

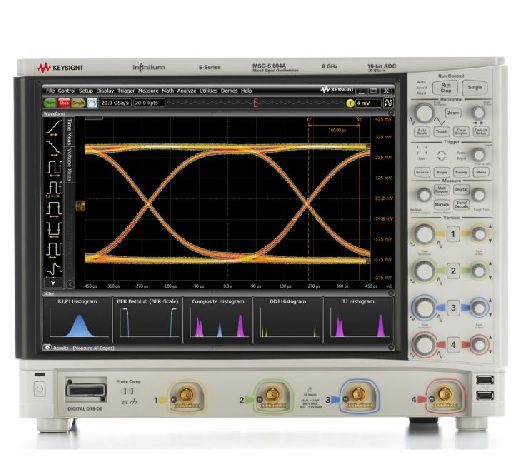

The Keysight Infiniium S-Series high-definition oscilloscopes incorporate new technology to deliver superior measurements. A 10-bit ADC, low-noise front end, correction filters, vertical scaling support down to 2 mV/division, and a precise time base produce high-fidelity measurements. In addition, its advanced frame and broad range of capability enable the S-Series oscilloscopes to tackle a wide range of test needs.
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
| Channels | 4 |
| Frequency | 4 GHz |
| Record Length | 800 MPts |
| Sampling Rate | 2 GS/s |
