Features:
- 2 Channel
- 100 MHz
- Dual analog channels and 16 channels logic analyzer, 100MHz maximum bandwidth, 1GSa/ s maximum real-time sample rate and 25GSa/ s maximum equivalent sample rate
- 5.6 inch 64k TFT LCD makes the waveform displays more clear and vivid
- Abundant trigger types: Edge, Pulse Width, Video, Slope, Alternate, Pattern and Duration
- Unique adjustable trigger sensitivity enables to meet different demands
- Enable to measure 22 types of wave parameters and track measurements via cursor automatically
- Unique waveform record and replay
Accessories:
- Probe× 2 (1.5m), (1:1 or 10:1 adjustable) Passive Probes
- A Power Cord that fits the standard of destination country
- A Quick Guide
Applications:
- Electronic Circuit Test
- Circuit Functional Test
- Logical Relation Between Signals Verification
- Circuit of Mixed Signal Test
- Education & Training

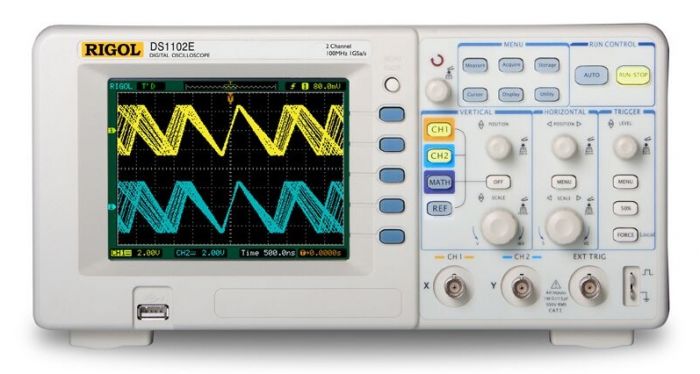

The Rigol DS1102E is a digital oscilloscope. The DS1102E is designed with dual channels and 1 external trigger channel.
Технические характеристики
| Manufacturer | Rigol |
|---|---|
| Condition | New |
| Channels | 2 |
| Frequency | 100 MHz |
| Record Length | 1 MPts |
| Sampling Rate | 1 GS/s |
