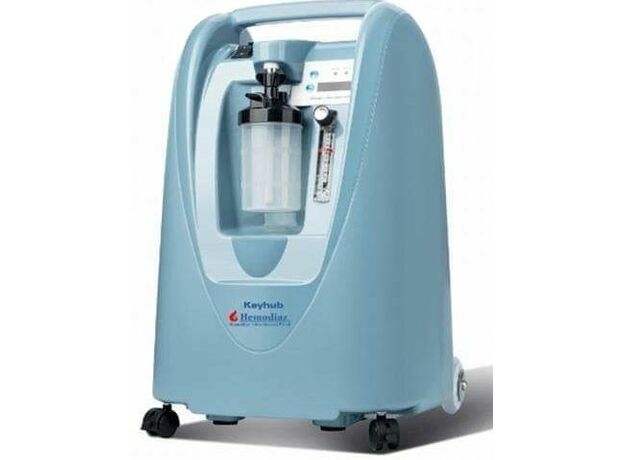

Specification:- Model : K5BW
Device Electrical Classification:Class II,Type BF
Weight:16.5KG
Dimensions:305×300×535(L×W×H)mm
Mode of Operation:Continuous
Flow setting control*:0 to 5 LPM
Oxygen Concentration*:93%±3%(0-5LPM)
Oxygen Concentration Sensor Alarm:82% or less(For the Purity monitoring Type)
Maximum Outlet Pressure:8.5psi
Average sound level:≤58dB (A)
Power supply:220(±10%)VAC,50Hz or Customized
Environmental Conditions:-
Operational Temperature range: 10 to 35 degrees Celsius
Operational Temperature Range:Up to 95%,Non-condensing
Storage Temperature Range:0 to 60 degrees Celsius
Storage Humidify Range:Up to 95%,Non-condensing
Oxygen Sensor:(5 to 45degrees Celsius),(101kPA to 60kPA)(For the Purity monitoring Type)
Advanced features:-
*Can continuously work 24 hrs.
*Dense Oxygen purity: 93%±3% with (0-5)L/min(medical oxygen level)
*Fully filtrate harmful substances in the air and refresh the air with rich oxygen
*Environmentally and health friendly
*Low noise ,mute motor, physical oxygen generation
*Easy for transportation: aged man and patient can move it easily for its handle and wheels.
*Safely broad-spectrum, oxygen concentration satisfying varied demands
*Portable and light
*High stability and consistency , long lifetime
*Completely physical rich oxygen supply. much safer, more environmental and health friendly
*CE and ISO13485 certificate.
*1 Years Factory Warranty
Standard Function:-
K5BW-Basic Type
1. Running time calculation.
2. Bacteria filter inside can keep away 99.999% bacteria in the air.
3. Alarms for high/low pressure, power failure, and air blockage.
4. Protection for over-heat and over-load.
5. Oxygen inhalation Function
K5BW-Nebulization Type:-
1. Running time calculation.
2. Bacteria filter inside can keep away 99.999% bacteria in the air.
3. Alarms for high/low pressure, power failure, and air blockage.
4. Protection for over-heat and over-load.
5. Oxygen inhalation Function
6. Medicine nebulization solution by output oxygen.
K5BW-Purity Monitoring Type:-
1. Running time calculation.
2. Bacteria filter inside can keep away 99.999% bacteria in the air.
3. Alarms for high/low pressure, power failure, and air blockage.
4. Protection for over-heat and over-load.
5. Oxygen inhalation Function
6. Medicine nebulization solution by output oxygen.
7.Low oxygen purity alarm and oxygen purity indication by two indicating lights on the LCD label.
List of supply:-
Basic Type/Purity monitoring Type Nebulization Type
1 pc humidifier bottle 1 pc humidifier bottle
1 pc oxygen connector 1 pc oxygen connector
1 pc oxygen cannula tubing 1 pc oxygen cannula tubing
1 pc air filter(inside the unit) 1 pc air filter(inside the unit)
1 pc English user manual 1 pc nebulization cup/mask
1 pc English user manual
Estimated Delivery: 5-7 Days Warranty :
- From manufacturer
- 1 Years
Brand/Manufacturer Brand: Dr Diaz Other Features Oxygen Concentrator Type:
- Home Oxygen Concentrator
- 5L Oxygen Concentrator
