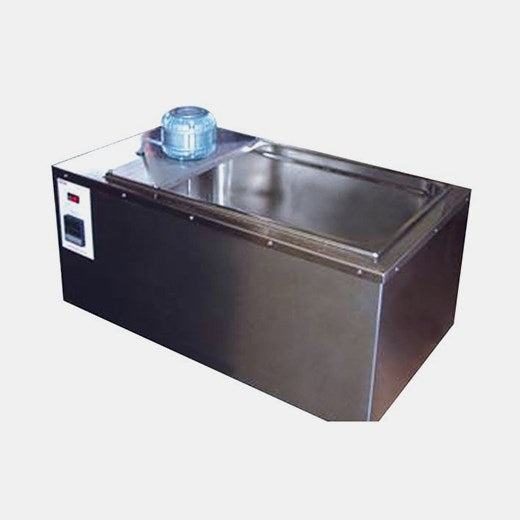

The ENBCT digital water baths with a top-mounted stirrer are ideal when temperature uniformity of the bath is imperative using an internal element and submerged RTD sensor connected to a digital temperature controller to ±0.1°C. A top mounted stirrer is fitted inside the bath chamber, which stirs the water in the chamber. They are manufactured with high quality stainless steel for easy maintenance and excellent durability. Baths are supplied with a perforated tray which covers the element and allows even circulation of the contents of the bath.
Data logging is available when optioned the controller can be connected via RS232/RS485 communication ports which can be connected directly to a data logger or computer to collect this information. Software is available for programming and monitoring.
Features:
- Excellent temperature uniformity for constant temperature applications
- High quality stainless steel for easy maintenance and excellent durability
- RCD/ELB (earth leakage breaker), Pt 100 ohms sensor
- Supplied with perforated tray
Optional:
- Manual reset over temperature cut off, programmable temperature controller and a on/off timer can also be fitted
- Range of bath lids, gabled or flat lids in stainless steel or clear acrylic available for ENBCT models
- Refrigerated models
Specifications:
Product ENBCT7S
ENBCT9S
ENBCT11S
Capacity 10L 22L 38L Interior Dimensions
(L x W x D)
200 x 300 x 170mm
380 X 300 x 170mm
470 x 490 x 170mm
External Dimensions
(L x W x D)
420 x 380 x 380mm
670 x 400 x 380mm
780 x 590 x 380mm
Temperature Control
Digital PID Controller with Pt 100 ohms sensor Temperature
Ambient +5°C to 100°C, accuracy ±0.1°C, ±0.2°C uniformity Heating System
Electric Element
Materials Stainless steel
Safety Over temperature alarm, temperature protection cutoff, earth leakage Breaker (ELB).
Power 750W 2000W 2400W Electrical 240V 50Hz Weight 18kg 24kg 36kg
