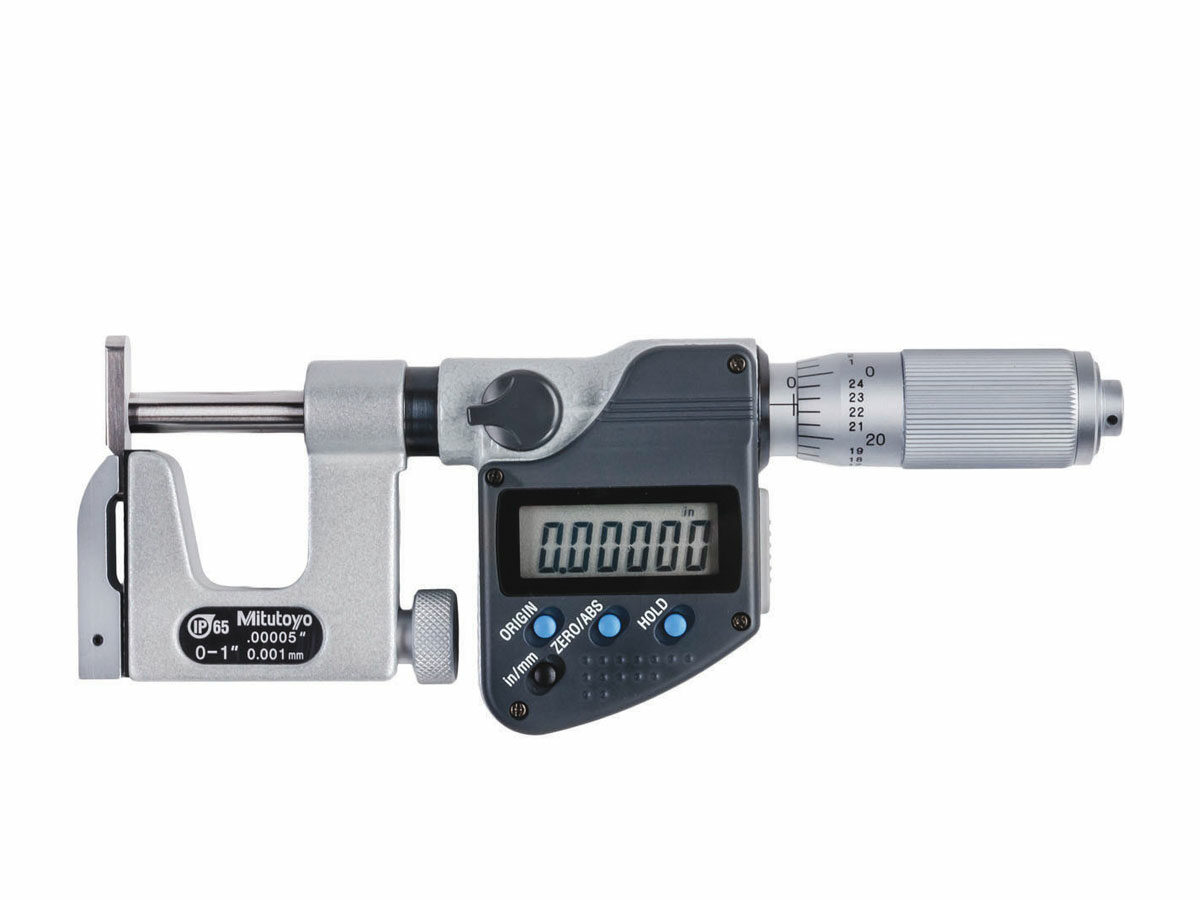

The Mitutoyo Uni-Mike digital micrometer features a clamp on the anvil side of the micrometer»s frame to allow the use of several different types of anvils. Depending on the type of anvil used, the Uni-Mike is proficient at measuring the thickness of tubes, rivet head heights, and shoulder-edge distances.
- Available in Metric and Inch/Metric models
- Metric models include a ratchet stop thimble with a constant measuring force
- Standard flat anvil
- Standard rod anvil
- Optional V-anvil
- Carbide tips resists wear on the measuring faces for accurate measurements for an extended period of time
- SPC output function allows for quick and easy data management in real time
- Functions include Origin Set, Zero/ABS Setting, Data Hold, Data Output, Function Lock, and inch/mm conversion (on inch/metric models only)
- Alarm: Low Voltage, Counting Value Composition Error
- Certificate of Inspection is provided
- Includes a standard bar except for 0-25 mm and 0-1” models
- IP65 protection permits use in environments exposed to cutting oil, dust, etc.**
- Supplied in fitted plastic case
**Anti-corrosion treatment is required after use
| Order No.: | Product Image: | Range: | Mass: | Optional Accessories: | |
|---|
| 317-351-30 | — | 0-1″ / 0-25.4mm | 340g | — |
| 317-352-30 | ![]() | 1-2″ / 25.4-50.8mm | 365g | — |
Технические характеристики
| Technology: | Digimatic |
|---|
| Units: | Inch, Metric |
|---|
| IP Rating: | IP65 |
|---|
| Resolution: | 0.00005′ / 0.001mm |
|---|
| Accuracy: | ±0.00015′ |
|---|
| SPC Output: | Yes |
|---|
| Ratchet/Thimble: | Friction Thimble |
|---|
| Graduation: | 0.0010′ / 0.01mm |
|---|
| Parallelism: | 0.00012′ or less / 3µm or less |
|---|
| Measuring Faces: | Carbide tipped (spindle only) |
|---|
| Display: | LCD |
|---|
| Battery: | SR44 (1 pc.) 938882 |
|---|
| Battery Life: | Approx. 2.4 years under normal use |
|---|
