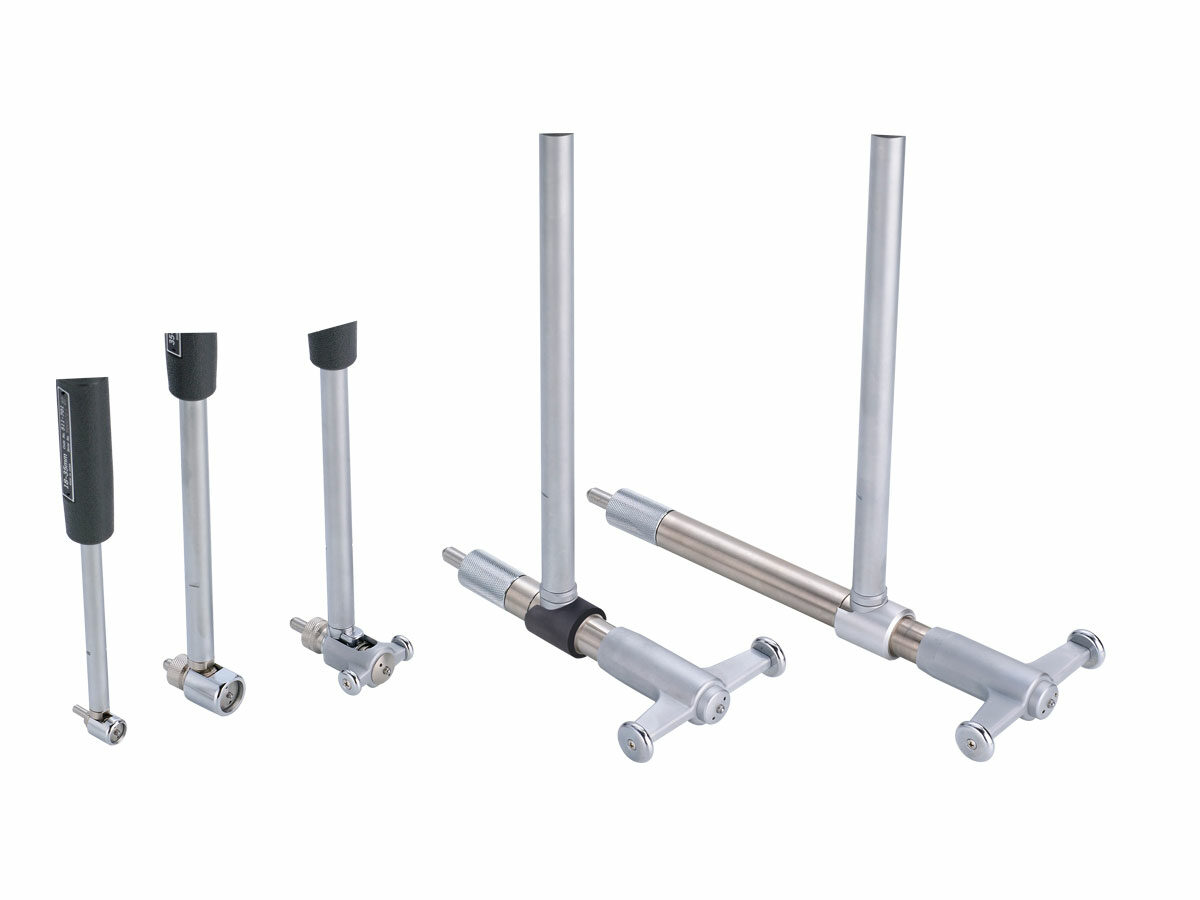

The Mitutoyo standard type bore gage is available in various ranges (metric and inch) to measure inside bore diameters with accuracy to 2µ/.00008″. The bore gage comes with interchangeable anvils to measure various bore diameters with the same gage. A pendulum guide structure improves sliding the gage for measurements while a two-point contact system detects geometry anomalies such as ovalness and taper.
- Available with or without a Mitutoyo Dial Indicator
- Available in Metric or Inch models
- Optional extension rods are available to measuring deep hole with accuracy
- Large, newly designed grips are easier to hold and reduce heat transfer from the operator for better accuracy
- Models with dial indicators are fully protected by a rugged cover
- Gage stem diameter is 8mm / .375″
- Interchangeable anvils are constructed of alloy steel with carbide-tipped measuring faces for added accuracy and durability
- Supplied in a fitted plastic case
| Order No.: | Product Image: | Range: | Number of anvils: | Number of spacers: | |
|---|
| 511-701 | — | 18 — 35mm | 9 | 2 |
| 511-702 | — | 35 — 60mm | 6 | 4 |
| 511-703 | — | 50 — 150mm | 11 (50mm Sub Anvil) | 4 |
| 511-704 | — | 100 — 160mm | 13 | 4 |
| 511-705 | — | 160 — 250mm | 6 | 7 |
| 511-706 | — | 250 — 400mm | 5 (75mm Sub Anvil) | 7 |
| 511-701 |
| 511-702 |
| 511-703 |
| 511-704 |
| 511-705 |
| 511-706 |
Технические характеристики
| Technology: | Mechanical |
|---|
| Units: | Metric |
|---|
| Contact Point: | Carbide Tipped |
|---|
| Stem Diameter: | 8mm |
|---|
| With Dial Gage Protective Cover (21DZA000): | No |
|---|
