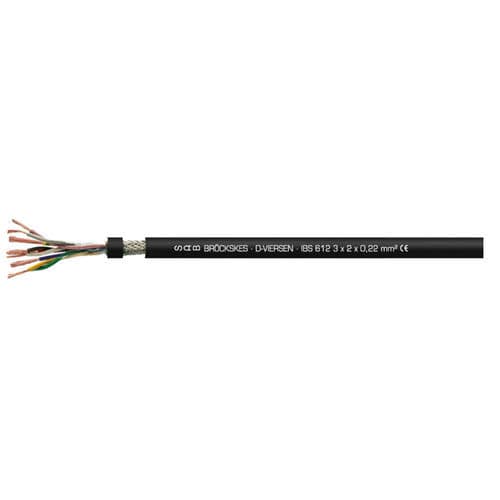

PVC Interbus-S cable for indoor and outdoor installation Marking for IBS 612 06123228: SAB BRÖCKSKES · D-VIERSEN · IBS 612 3 x 2 x 0,22 mm² CE This cable is a shielded PVC Interbus-S cable for outdoor and underground installation. The cable twisted in pairs with a minimum bending radius of 7.5 x d is primarily used for communication in the field level (e.g. sensors, actuators, controllers), but also for information transmission between the field level and the control level above (e.g. SPS). flame retardant and self-extinguishing for indoor and outdoor installation
Технические характеристики
CharacteristicsTypedataFormatDINProtectioninsulated, flame-retardant, oil-resistant, shielded, self-extinguishing, weather-resistantConfigurationtwisted pairCore materialcopperApplicationscontrol, outdoor, indoor/outdoor, underground, for sensors, for telecommunication networksMaterial of the insulationPVC-sheathedBusInterBusNormsIECOther characteristicsflexible, insulatedNominal voltage
350 V, 1,000 V
Temperature
Min.: -30 °C (-22 °F)
Max.: 70 °C (158 °F)
Cross-section
0.22 mm², 1 mm² (0 in²)
