Features:
- PowerFlex design gives variable voltage and current
- combinations within a maximum power envelope
- Up to 60V and up to 10A per output (180W maximum)
- Constant voltage or constant current operation
- Low output noise and good transient response
- PowerFlex or fixed-range operation plus custom limits
- True analogue controls with digital settings locking
- Independent outputs or isolated voltage tracking
- Outputs can be wired in series or parallel for 120V or 20A
- Variable OVP trips, safety binding-post terminals
- 4 digit fixed resolution meters, selectable remote sensing
- Compact ½ rack 3U case for bench use or rack mounting
Accessories:
- 4U Rack Mount for CPX, MX, QPX and PL/PLH Series 3U PSUs.
Specifications:
- 60 V
- 20 A
- 840 W

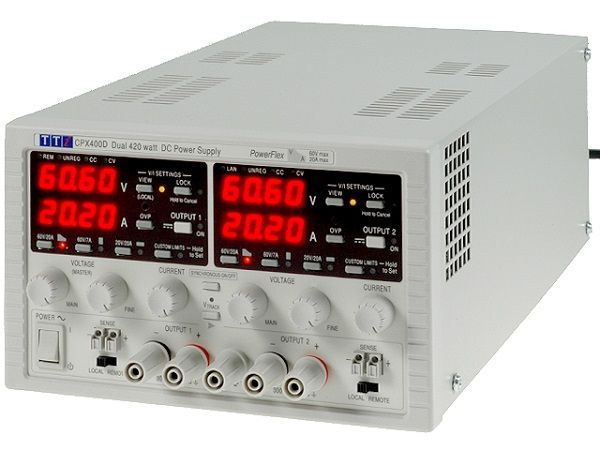

The two outputs of the CPX400D are completely independent and electrically isolated from each other. With V-Track selected, the two outputs remain electrically isolated, but the voltage control of the Master output sets an identical voltage on the Slave output. This enables the user to create two rails of either polarity and to reference them to different grounds if necessary (e.g. digital ground and analog ground). Alternatively the outputs can be wired in series or parallel to create a voltage capability up to 120V or a current capability up to 40A with the voltage set using a single control.
Технические характеристики
| Manufacturer | Thurlby Thandar Instruments |
|---|---|
| Condition | New |
| Current | 20 A |
| Voltage | 60 V |
| Power | 840 W |
