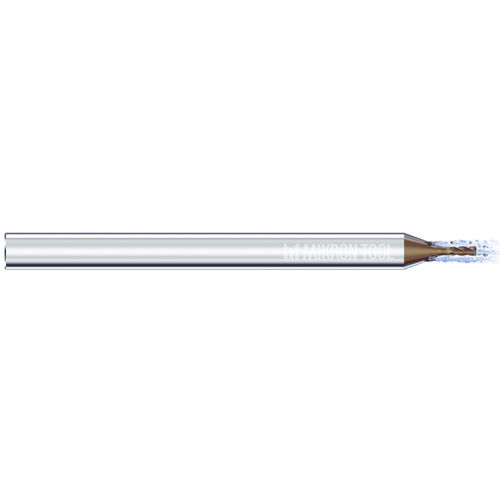

CrazyMill Cool P&S square and corner radius is an innovative, 3-flute mill with in the shank integrated coolant supply ducts which Mikron Tool developed specially for rough and finish milling of stainless steels, titanium, super alloys and CrCo alloys. It is also very well adapted for other materials such as steels up to max. 40 HRC, cast iron, non-ferrous metals and plastics. Based on its ability to plunge directly with up to 1 x d vertically into material, it becomes a “plunge-mill” i.e. “drill-mill” or “milling drill” for metal and is especially suitable to mill grooves, pockets and faces in smallest spaces in general and, with Type A, specifically for keyways (feather keys) as found in drive shafts for example. Both square and corner radius solid carbide shaft endmill is available in diameters from 1 – 8 mm (.039” — .315”, fractional inches available) and for depths up to 5 x d. This square respectively corner radius tungsten carbide shaft endmill with integrated cooling available in standard endmill sizes from 1 to 8 mm (.039” to .315”, fractional inches available) is new and unique in its design. This innovative tool can “drill” vertically into material up to 1 x d and then move sideways to mill slots and pockets into solid material. Hence operations like feather key-milling (with Type A) can be executed rapidly and process safe in smallest spaces. The following features distinguish this small milling bit CrazyMill Cool P&S which shows outstanding performance especially in nickel-based alloys: -Geometry of the head section -Edges and flutes geometries -Through cooling -Ultrafine grain carbide -High-performance coating
Технические характеристики
CharacteristicsGeometrycorner radiusConstructionsolid carbideTypeslot, plungeMaterialtungsten carbideTreated materialfor stainless steel, for metalOther characteristicshigh-performance, square-head, with cylindrical shank, 3-fluteDiameter
Max.: 8 mm (0.31 in)
Min.: 1 mm (0.04 in)
