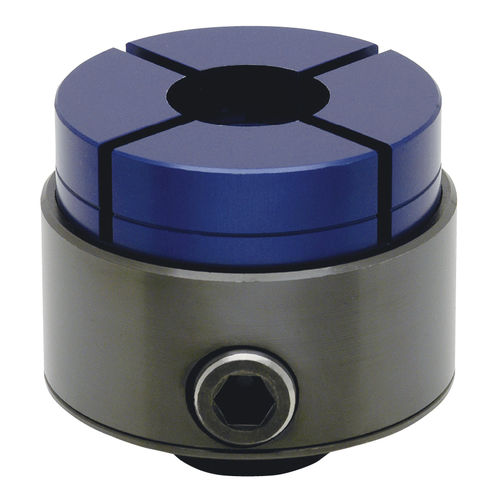

OD clamp with machinable jaw. Can be used on VMC, HMC and lathe. 4 jaw sections tilt toward the center to clamp the circumference of workpiece. This unique clamp eliminates the need for complicated fixture and provides simple workholding. Interchangeable jaw allow economical workholding. Jaw Size: 65, 90mm in diameter Clamping Force: 4000, 6,000N Workpiece Locating Repeatability: +/- 0.03mm Jaw Locating Repeatability: +/- 0.02mm Materials: Body: S45C steel (Black oxide finish) Jaw: A7075 alluminum, Blue anodized Reference: CP121 dedicated machinable jaw. CP122 mounting adapter to use on lathe.
Технические характеристики
CharacteristicsClamping methodcolletOther characteristicsaluminum, machinable, steelNumber of jaws4-jaw
